Di Natale Bertelli - TC5002 - Telescopic Cylinder TC 5002 Ball
Di Natale Bertelli - TC5002 - Telescopic Cylinder TC 5002 Ball
Di Natale Bertelli - TC5002 - Telescopic Cylinder TC 5002 Ball
Di Natale Bertelli - TC5002 - Telescopic Cylinder TC 5002 Ball
Di Natale Bertelli - TC5002 - Telescopic Cylinder TC 5002 Ball
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Di Natale Bertelli - TC5002 - Telescopic Cylinder TC 5002 Ball

Di Natale Bertelli - TC5002 - Telescopic Cylinder TC 5002 Ball

€1,323.21

(Excl. VAT)

Price

(Excl. VAT)

€1,323.21

Product Description

The Di Natale-Bertelli TC5002 is a robust telescopic hydraulic cylinder designed for demanding agricultural and industrial machinery. Featuring a ball joint mounting, this genuine Di Natale-Bertelli component ensures reliable and flexible operation. Engineered for durability and performance, it is an essential part for various lifting and positioning tasks.
Di Natale Bertelli

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
2470 mm
Weight
106 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629
LMin. length
685 mm
Oil capacity
24 l
Max. capacity
16 t
Number of stages
5
Sealing material
Polyurethane
Stage 1 diameter
68 mm
Stage 2 diameter
88 mm
Stage 3 diameter
107 mm
Stage 4 diameter
126 mm
Stage 5 diameter
145 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
170 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
50 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
45 mm
Max. capacity - stage 2
10,9 t
Max. capacity - stage 3
16,1 t
Max. capacity - stage 4
22,4 t
Max. capacity - stage 5
29,7 t
Max. capacity at 180 bar
29,7 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
AMin. mounting holes distance
210 mm
Mounting type - rod connection
Ball
Oil connection thread diameter
M22
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
107 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
245 mm
FMounting hole to swivel tap distance
440 mm
HMounting hole diameter - rod connection
65 mm
Mounting hole diameter - cylinder connection
45 mm
Manufacturer
Di Natale-Bertelli

Similar items you might like

  • Di Natale Bertelli

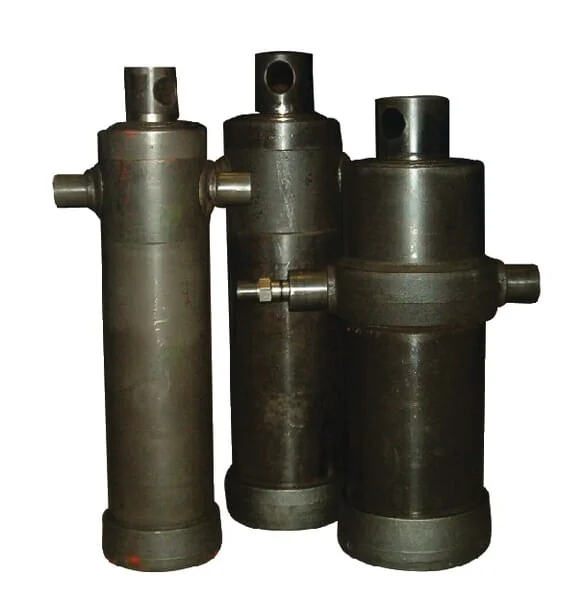

    Di Natale Bertelli - TC5002F - Telescopic Cylinder TC 5002 Eye
