DNP - RSM20L36 - Hydraulic Connector 28L

DNP - RSM20L36 - Hydraulic Connector 28L

DNP - RSM20L36 - Hydraulic Connector 28L

DNP - RSM20L36 - Hydraulic Connector 28L

Number of products

In stock - ready to ship

Order now for delivery between 18 May and 21 May

Free shipping

Pay Securely with

DNP - RSM20L36 - Hydraulic Connector 28L

DNP - RSM20L36 - Hydraulic Connector 28L

€60.08

(Excl. VAT)

Price

(Excl. VAT)

€60.08

Number of products

Product Description

Screw coupling with special flat valve Low leakage Can be coupled under pressure

DNP

Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 470 genuine Dnp spare parts.

Product Details

Brand

Unit

Each

Shape

Straight - 2 connection sides

Series

28L

Benefits

Very high operating pressure No air pockets during coupling Manual coupling at up to 20 bar

Properties

Very robust Resistant to high-frequency, large pressure fluctuations Utmost corrosion resistance RS-M20 and RS-M25 with holes for hook spanner in the screw-on sleeve

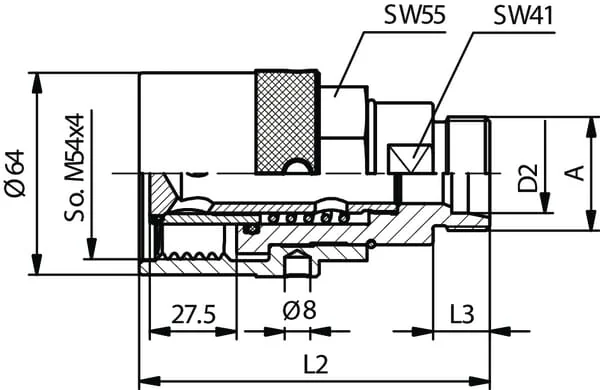

L2Total length

107 mm

Technical info

Coupling must be screwed as tight as possible

Working pressure

200 BAR

Application range

Construction machines Vehicle construction Mineral oil-based fluids

Surface treatment

White passivated

Flow rate at 2 bar

120 l/min

Connection no 1 type

Thread

Max working pressure

300 BAR

L3Connection 2, length

14 mm

Max working temperature

100 °C

Min. working temperature

-20 °C

Connectable under pressure

Yes

Connection no 1 thread pitch

2.00 mm

AConnection 2, thread diameter

3/4 Inch

D1Connection no 1 thread diameter

M36

Manufacturer

DNP
