DNP - SKSM25C12 - Hydraulic Coupling 3/4" BSP

DNP - SKSM25C12 - Hydraulic Coupling 3/4" BSP

DNP - SKSM25C12 - Hydraulic Coupling 3/4" BSP

DNP - SKSM25C12 - Hydraulic Coupling 3/4" BSP

Number of products

In stock - ready to ship

Order now for delivery between 4 May and 7 May

Free shipping on orders over €60

Pay Securely with

DNP - SKSM25C12 - Hydraulic Coupling 3/4" BSP

DNP - SKSM25C12 - Hydraulic Coupling 3/4" BSP

€25.13

(Excl. VAT)

Price

(Excl. VAT)

€25.13

Number of products

DNP

Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 470 genuine Dnp spare parts.

Product Details

Brand

Unit

Each

Shape

Straight - 2 connection sides

Benefits

High operating pressure Prevents accidental release caused by vibration

Properties

Robust Low level of pressure loss Locks on both sides

ISO standard

14541

Pipe diameter

25 mm

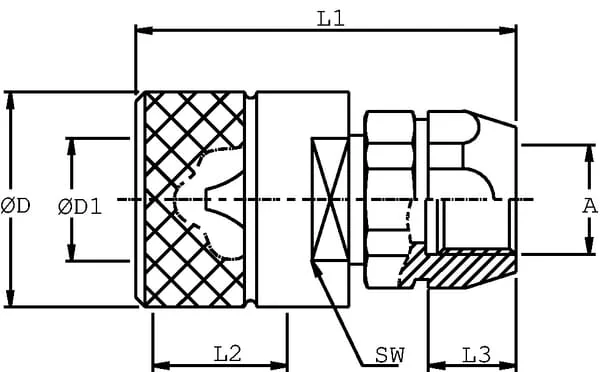

L1Total length

82 mm

Technical info

Coupling must be screwed as tight as possible

Working pressure

300 BAR

Application range

Construction machines Mineral oil-based fluids

Connection 2, type

Thread

Flow rate at 2 bar

160 l/min

ØDOutside diameter

55 mm

Connection no 1 type

Quick coupling

Max working temperature

100 °C

Min. working temperature

-30 °C

Connection 2, thread type

BSP

D1Connection no 1 diameter

35 mm

Connection no 1 thread type

Metric

Connection no 1 thread pitch

3.00 mm

Connection 2, thread diameter

3/4 Inch

L3Connection 2, thread length

19 mm

SWConnection no 1 wrench size

50.0 mm

Connection 2, threads per inch

14

Connection no 1 thread diameter

M48

Connection 2, type - male/female

Female

Connection no 1 type - male/female

Male

Manufacturer

DNP

Similar items you might like

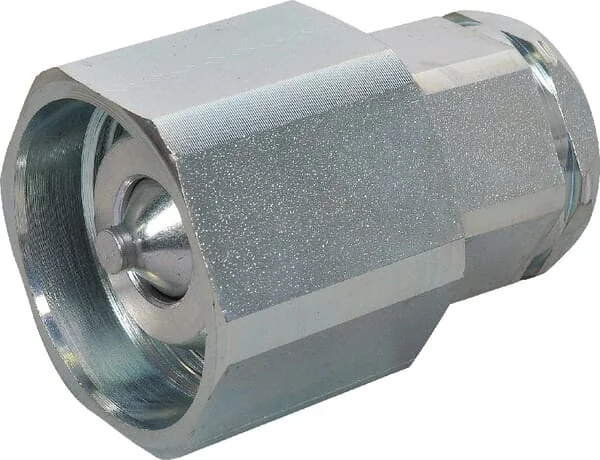

DNP - SKSM25C12HEX - Hydraulic Connector, 3/4" BSP
DNP
€34.25

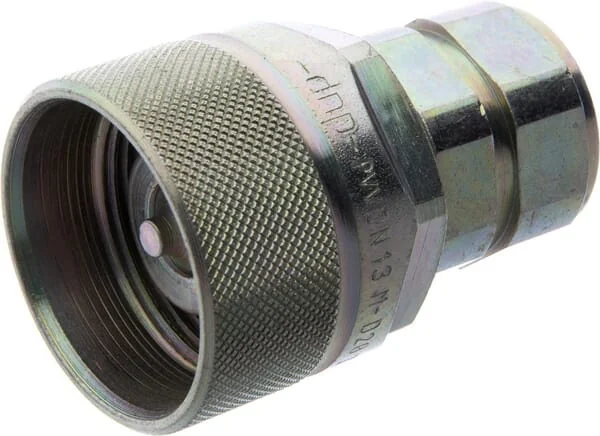

DNP - SKSM25C16 - Hydraulic Coupling 1" BSP
DNP
€30.29

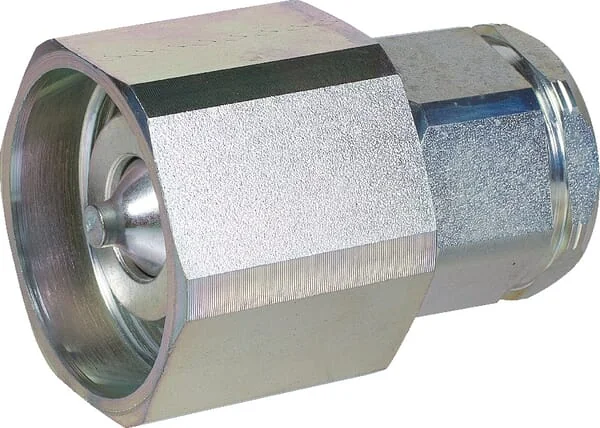

DNP - SKSM25C16HEX - Hydraulic Connector, 1" BSP
DNP
€35.65

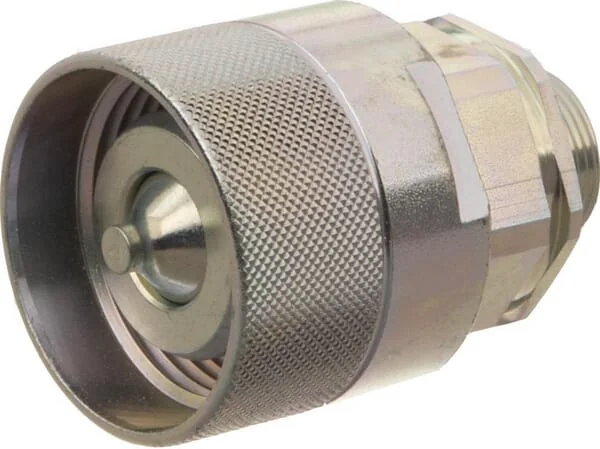

DNP - SKSM25L26 - Hydraulic Coupling
