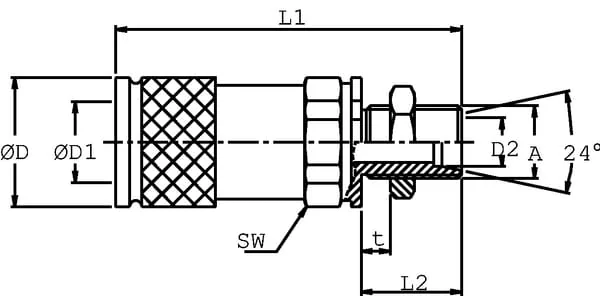

DNP - SKVF10T20 - DNP Coupling Housing Shot 3/8 M20-12S
DNP - SKVF10T20 - DNP Coupling Housing Shot 3/8 M20-12S
DNP - SKVF10T20 - DNP Coupling Housing Shot 3/8 M20-12S
DNP - SKVF10T20 - DNP Coupling Housing Shot 3/8 M20-12S

In stock - ready to ship

Order now for delivery between 7 May and 11 May
Free shipping on orders over €60

Pay Securely with

DNP - SKVF10T20 - DNP Coupling Housing Shot 3/8 M20-12S

DNP - SKVF10T20 - DNP Coupling Housing Shot 3/8 M20-12S

€25.23

(Excl. VAT)

Price

(Excl. VAT)

€25.23

DNP
Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 470 genuine Dnp spare parts.

Product Details

Brand
DNP
Unit
Each
Series
12S
Details
One-handed coupling With special flat valve
Benefits
User-friendly Low leakage No air pockets during coupling
Body size
10 mm
Size code
BG 2
Properties
Locks on both sides Utmost corrosion resistance
ISO standard
16028
Total length
86 mm
Working pressure
150 BAR
Application range
Construction and agricultural machines Hydraulic tools Applications in sensitive environments Mineral oil-based fluids
Flow rate at 2 bar
40 l/min
Max working pressure
250 BAR
Max working temperature
100 °C
Connection no 1 diameter
32 mm
Min. working temperature
-20 °C
Connection 2, thread pitch
1.50 mm
Connection 2, thread length
27 mm
Connection no 1 wrench size
30.0 mm
Connection 2, thread diameter
M20
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Female
Manufacturer
DNP
