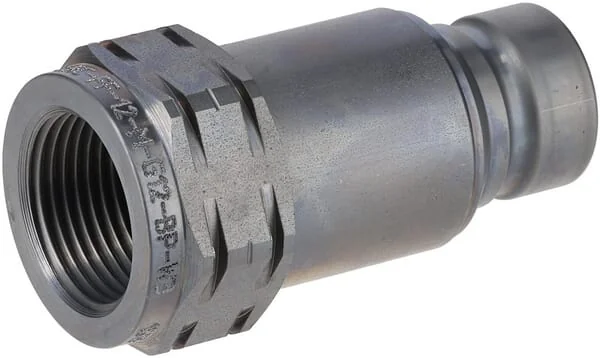

DNP - SKVM12C12 - QR Coupling Male 1/2 - 3/4" BSP
DNP - SKVM12C12 - QR Coupling Male 1/2 - 3/4" BSP
DNP - SKVM12C12 - QR Coupling Male 1/2 - 3/4" BSP
DNP - SKVM12C12 - QR Coupling Male 1/2 - 3/4" BSP

In stock - ready to ship

Order now for delivery between 19 May and 22 May
Free shipping on orders over €60

Pay Securely with

DNP - SKVM12C12 - QR Coupling Male 1/2 - 3/4" BSP

DNP - SKVM12C12 - QR Coupling Male 1/2 - 3/4" BSP

€14.69

(Excl. VAT)

Price

(Excl. VAT)

€14.69

DNP
Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 470 genuine Dnp spare parts.

Product Details

Brand
DNP
Unit
Each
Shape
Straight - 2 connection sides
Details
One-handed coupling With special flat valve
Benefits
User-friendly Low leakage No air pockets during coupling
Material
Steel
Body size
1/2 Inch
Size code
BG 3
Properties
Locks on both sides Utmost corrosion resistance
ISO standard
16028
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
L1Total length
71 mm
Application range
Construction and agricultural machines Hydraulic tools Applications in sensitive environments Mineral oil-based fluids
Surface treatment
Zinc Nickel
Connection 2, type
Thread
Flow rate at 2 bar
170 l/min
ØDOutside diameter
38 mm
Connection no 1 type
Quick coupling
Max working temperature
100 °C
Min. working temperature
-30 °C
Connection 2, thread type
BSP
Connectable under pressure
No
ØD1Connection no 1 diameter
24,5 mm
Connection 2, thread diameter
3/4 Inch
Connection 2, threads per inch
14
Connection 2, type - male/female
Female
Connection no 1 type - male/female
Male
Manufacturer
DNP
