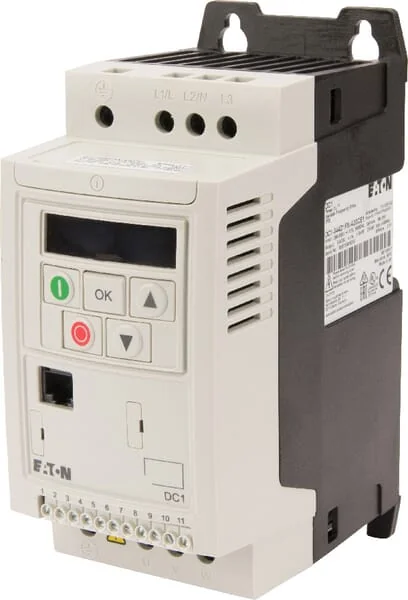

Eaton - DC1344D1FNA20CE1 - Frequency Controller

OEM Supplier

SKU: eaton-dc1344d1fna20ce1

Eaton - DC1344D1FNA20CE1 - Frequency Controller

€501.10

(excl. VAT)
RRP:€719.25
Save €218.15

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€501.10

Eaton
Eaton Corporation plc is a multinational power management company with operations in over 175 countries. Founded in 1911 by Joseph O. Eaton, the company is headquartered in Dublin, Ireland, though its operational headquarters are in Beachwood, Ohio, USA. Eaton specializes in electrical products, systems, and services; aerospace, vehicle, and hydraulic components; and power quality, distribution, and control solutions. In the agricultural and heavy machinery sectors, Eaton is a leading supplier of hydraulic systems and power transmission solutions. Its product portfolio includes a wide range of hydraulic pumps, motors, valves, cylinders, and hoses, which are critical for the precise control and operation of tractors, harvesters, and other farm equipment. The brand also provides advanced power management technologies that enhance efficiency and reliability in demanding agricultural applications. Partao offers a comprehensive selection of genuine Eaton spare parts. Our top categories include Beacon Lights, Bolts & Fasteners, Brackets & Supports, Camshafts, and Control Modules, ensuring you can find the components needed to maintain your machinery. Over 586 genuine Eaton spare parts are available at Partao. Agricultural equipment manufacturers and operators worldwide rely on Eaton's robust and innovative solutions for their machinery. The company's commitment to engineering excellence and its global support network ensure that its components deliver consistent performance and durability, making them a trusted choice for maintaining operational efficiency in farming and forestry.

Brand
Unit
Each
Depth
124 mm
Width
81 mm
Height
184 mm
Mains voltage
380.0-480.0 V
Mains frequency
50 Hz60 Hz
Insulation class
20
Max. Current (A)
4.1 A
Protection class
IP20
Max. motor rating
1.5 kW
Power consumption
76,5 VA
Type of converter
U converter
With PC connection
Yes
Max. output voltage
500 V
With control element
Yes
Max. output frequency
500 Hz
Output Frequency (Hz)
50/60 Hz
Number of phases input
3
With optical interface
No
Manufacturer Product ID
185746
Number of phases output
3
Number of digital inputs
4
Primary power supply (V)
400V
Number of analogue inputs
2
Number of digital outputs
1
Nominal output current I2N
4,1 A
Number of analogue outputs
1
Number of HW-interfaces USB
0
Supporting protocol for ASI
No
Supporting protocol for CAN
Yes
Supporting protocol for KNX
No
Supporting protocol for LON
No
Suitable for original number
DC1-344D1FN-A20CE1
4-quadrant operation possible
No
Number of HW-interfaces other
0
Number of interfaces PROFINET
0
Integrated breaking resistance
No
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Supporting protocol for BACnet
No
Supporting protocol for Modbus
Yes
Supporting protocol for SERCOS
No
Supporting protocol for TCP/IP
No
Supporting protocol for SUCONET
No
Number of HW-interfaces parallel
0
Supporting protocol for INTERBUS
No
Supporting protocol for PROFIBUS
No
Supporting protocol for DeviceNet
No
Supporting protocol for PROFIsafe
No
Number of HW-interfaces serial TTY
0
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for PROFINET IO
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for Data-Highway
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for INTERBUS-Safety
No
Application in industrial area permitted
Yes
Relative symmetric net voltage tolerance
10 %
Supporting protocol for DeviceNet Safety
No
Supporting protocol for other bus systems
Yes
Relative symmetric net frequency tolerance
10 %
Number of HW-interfaces industrial Ethernet
0
Supporting protocol for Foundation Fieldbus
No
Max. output at linear load at rated output voltage
1,5 kA
Supporting protocol for AS-Interface Safety at Work
No
Max. output at quadratic load at rated output voltage
1,5 kA
Application in domestic- and commercial area permitted
Yes
EAN
4015081812455
Manufacturer
Eaton
