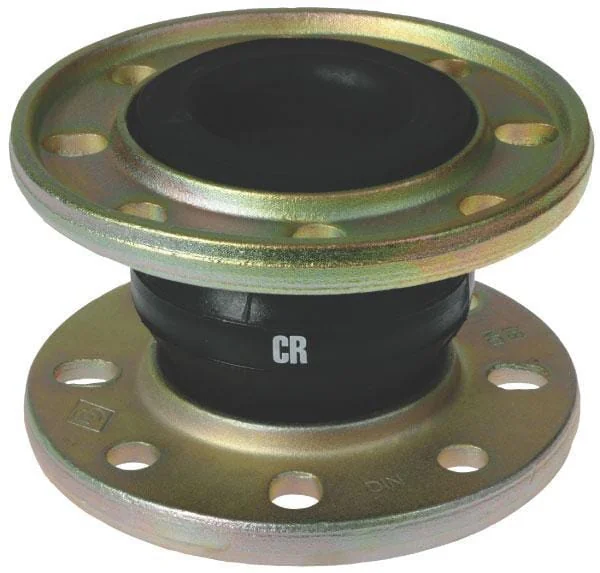

ELAFLEX - ERVCR100 - Coupling Diameter 100mm
ELAFLEX - ERVCR100 - Coupling Diameter 100mm
ELAFLEX - ERVCR100 - Coupling Diameter 100mm
ELAFLEX - ERVCR100 - Coupling Diameter 100mm

In stock - ready to ship

Order now for delivery between 14 May and 18 May
Free shipping

Pay Securely with

ELAFLEX - ERVCR100 - Coupling Diameter 100mm

ELAFLEX - ERVCR100 - Coupling Diameter 100mm

€301.12

(Excl. VAT)

Price

(Excl. VAT)

€301.12

Product Description

Elastic pipe connector ERV type CR (black) with rotating steel flanges
ELAFLEX

Product Details

Brand
ELAFLEX
Unit
Each
Angle
20 °
Benefits
Simple to use
Consists of
The rubber compensators are supplied ready for installation Additional seals are usually not necessary
Total length
150 mm
Technical info
The information for the permitted range of movement applies to temperatures up to 50°C. At operating temperatures of 70°C, the permissible utilisation level is 80% The value "max. torque (Nm)" indicates the maximum tightening torque of the flange bolts
Inside diameter
100 mm
Nominal pressure
16 BAR
Outside diameter
220 mm
Application range
Process water, waste water, sewage sludge, slurry and other biomasses They differ only in the material of the rubber bellows from the ERV special types with the coloured rings. As a result, the media and temperature resistance is limited. As regards the normal water, environment and ageing resistance, as well as the noise and vibration damping and the permitted range of movement, they are comparable with the ERV special types
Connection holes diameter
18 mm
Number of connection holes
8
Connection holes circle diameter
180 mm
Manufacturer
ELAFLEX
