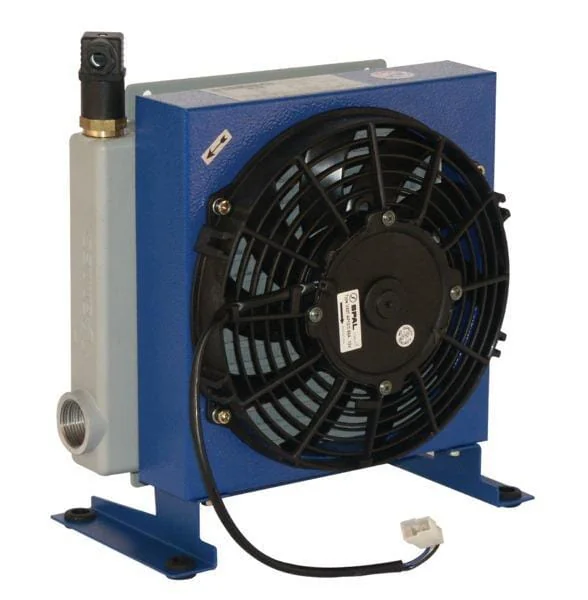

EMMEGI - OK2015K24201 - Oil Cooler (24 V) 38-50'c 2015

SKU: emmegi-ok2015k24201

EMMEGI - OK2015K24201 - Oil Cooler (24 V) 38-50'c 2015

€384.20€328.38 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€384.20

Brand
Part Numbers
ok2015k24201
Pros
Compact build-in Complete unit Increased efficiency Long component service life
Unit
Each
Depth
157 mm
Weight
6,5 kg
Includes
Aluminium radiator Support Impeller / electric motor, voltage depends on version Temperature switch Connector for connecting temperature switch/DC motor
Properties
Coolers are equipped with thermostats (38-50ºC) as standard Motor is switched by relay
Consists of
Aluminium cooler Support Fan/electric motor, voltage depends on version 40-48ºC temperature switch Plug for connecting temperature switch/DC motor
Noise level
73 dB(A)
Nominal voltage
24 V
Product details
Temperature switch 38-50°C Maximum temperature 120°C The motor must be switched via a relay
Insulation class
64
Long description
Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system.
Application range
For heat exchange between oil and cooling air in hydraulic systems Improves heat exchange between oil and environment
Max. working flow
70 l/min
Fan outside diameter
225 mm
Max. working pressure
20 BAR
Cooling medium flow type
Suction
Connection thread diameter
1 Inch
Thermostat working temperature
38 - 50
Manufacturer
Emmegi

Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system.
Emmegi
Emmegi is a manufacturer known for its components used in various industrial and agricultural applications. While specific founding details are not widely publicized, the company has established itself as a supplier of robust parts, often found in hydraulic and cooling systems. Its products are designed to meet the demanding requirements of heavy machinery. The brand's product lines typically include heat exchangers, oil-air coolers, and hydraulic components. These are critical for maintaining optimal operating temperatures and ensuring efficient power transmission in machinery. Emmegi components are often integrated into larger systems, providing reliable performance in challenging environments. At Partao, you can find a comprehensive selection of Emmegi spare parts, including Brackets & Supports, Control Modules, Cooling Fans, Doors & Panels, and Hoses & Fittings. Emmegi parts are frequently chosen by equipment manufacturers and operators seeking durable and efficient solutions for their hydraulic and cooling needs. The reliability of its components contributes to the overall longevity and performance of the machinery they are installed in, making them a practical choice for maintenance and repair. Shop more than 329 genuine Emmegi spare parts.
