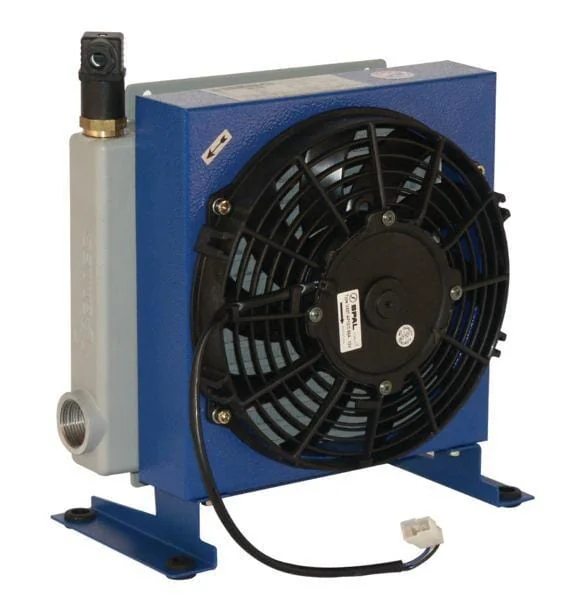

Emmegi - OK2020K01201 - Emmegi Oil Cooler (230V) 38-50'C 2020K-01-2-01

SKU: emmegi-ok2020k01201

Emmegi - OK2020K01201 - Emmegi Oil Cooler (230V) 38-50'C 2020K-01-2-01

€460.47€393.56 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€460.47

Brand
Emmegi
Part Numbers
OK2020K01201
Pros
Compact build-in Complete unit Increased efficiency Long component service life
Unit
Each
Depth
168 mm
Weight
8 kg
Includes
Aluminium radiator Support Impeller / electric motor, voltage depends on version Temperature switch Connector for connecting temperature switch/DC motor
Material
Steel Plastic Aluminium
Noise level
68 dB(A)
Technical info
Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 40 - 48 °C thermostat.
Nominal voltage
230 V
Product details
Temperature switch 38-50°C Maximum temperature 120°C The motor must be switched via a relay
Insulation class
55
Long description
Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system.
Max. working flow
90 l/min
Fan outside diameter
200 mm
Max. working pressure
20 BAR
Cooling medium flow type
Suction
Connection thread diameter
1 Inch
Thermostat working temperature
38 - 50
Manufacturer
Emmegi

Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system.
Emmegi
Emmegi is a supplier of agricultural machinery components, including hydraulic cylinders and power transmission systems. The brand specializes in high-performance parts for tractors and harvesting equipment. Its products are known for precision engineering and long service life. Shop more than 329 genuine Emmegi spare parts.
