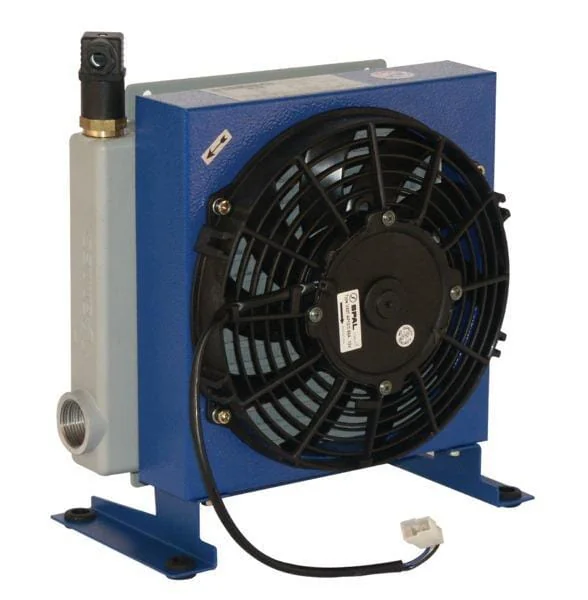

Emmegi - OK2024K24201 - Emmegi Oil Cooler (24 V) 38-50'C 2024K-24-2-01 - 8716106986132

SKU: emmegi-ok2024k24201

Emmegi - OK2024K24201 - Emmegi Oil Cooler (24 V) 38-50'C 2024K-24-2-01 - 8716106986132

€489.07€418.01 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€489.07

Brand
Emmegi
Part Numbers
8716106986132; OK2024K24201
Pros
Compact flush mounting Complete unit Increased efficiency Long component service life
Unit
Each
Depth
175 mm
Weight
9,6 kg
Includes
Aluminium radiator Support Impeller/electric motor, voltage according to version Temperature switch Connector for connecting temperature switch/DC motor
Noise level
74 dB(A)
Technical info
Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 40 - 48 °C thermostat.
Nominal voltage
24 V
Product details
Temperature switch 38-50°C Maximum temperature 120°C The motor must be switched via a relay
Insulation class
68
Long description
Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50°C thermostat. A controlled oil temperature increases the efficiency and lifetime of the components in the system.
Max. working flow
110 l/min
Fan outside diameter
280 mm
Max. working pressure
20 BAR
Cooling medium flow type
Suction
Connection thread diameter
1 Inch
Thermostat working temperature
38 - 50
Manufacturer
Emmegi

Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50°C thermostat. A controlled oil temperature increases the efficiency and lifetime of the components in the system.
Emmegi
Emmegi is a supplier of agricultural machinery components, including hydraulic cylinders and power transmission systems. The brand specializes in high-performance parts for tractors and harvesting equipment. Its products are known for precision engineering and long service life. Shop more than 329 genuine Emmegi spare parts.
