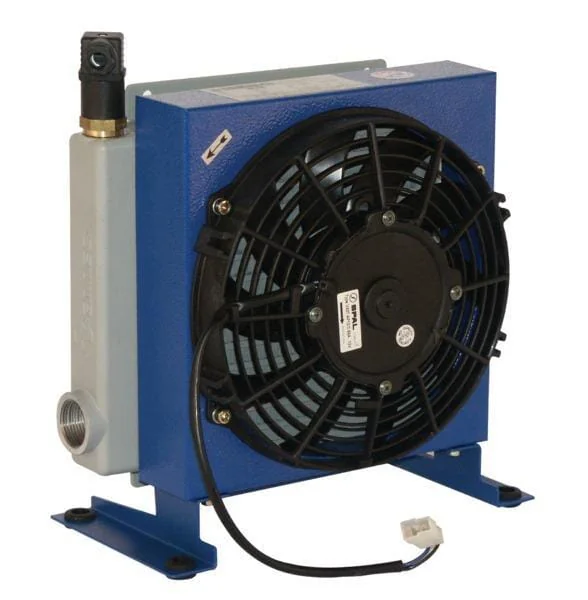

Emmegi - OK2030KBV24301 - Emmegi Bypass Oil Cooler 24V 48-60˚C

SKU: emmegi-ok2030kbv24301

Emmegi - OK2030KBV24301 - Emmegi Bypass Oil Cooler 24V 48-60˚C

€839.73€717.72 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€839.73

Brand
Emmegi
Part Numbers
OK2030KBV24301
Pros
Compact flush mounting Complete unit Increased efficiency Long component service life
Unit
Each
Depth
211 mm
Weight
14 kg
Includes
Aluminium radiator Support Impeller/electric motor, voltage according to version Temperature switch Connector for connecting temperature switch/DC motor
Material
Steel Plastic Aluminium
Noise level
68 dB(A)
Technical info
Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 40 - 48 °C thermostat.
Nominal voltage
24 V
Product details
Temperature switch 38-50°C Maximum temperature 120°C The motor must be switched via a relay
Insulation class
65
Long description
Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50°C thermostat. A controlled oil temperature increases the efficiency and lifetime of components in the system.
Max. working flow
130 l/min
Fan outside diameter
305 mm
Max. working pressure
20 BAR
Cooling medium flow type
Suction
Connection thread diameter
1 Inch
Thermostat working temperature
38 - 50
Manufacturer
Emmegi

Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50°C thermostat. A controlled oil temperature increases the efficiency and lifetime of components in the system.
