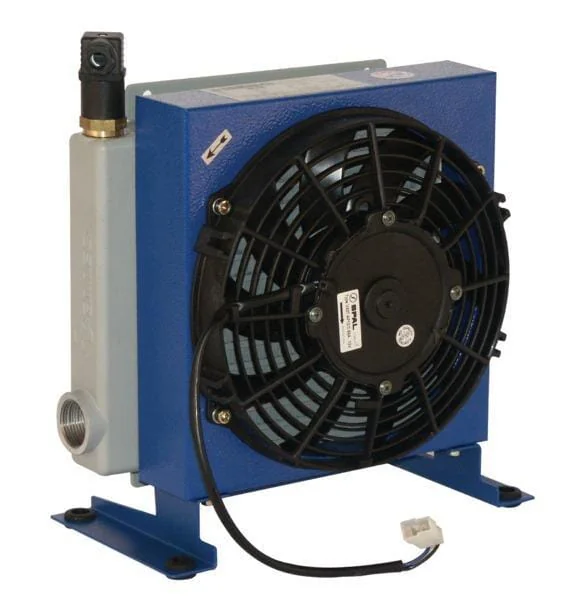

Emmegi - OK2040KBV12301 - Emmegi Bypass Oil Cooler 12V 48-60˚C

SKU: emmegi-ok2040kbv12301

Emmegi - OK2040KBV12301 - Emmegi Bypass Oil Cooler 12V 48-60˚C

€1,142.81€976.76 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,142.81

Brand
Emmegi
Part Numbers
OK2040KBV12301
Pros
Compact flush mounting Complete unit Increased efficiency Long component service life
Unit
Each
Depth
238 mm
Weight
20 kg
Includes
Aluminium radiator Support Impeller / electric motor, voltage depends on version Temperature switch Connector for connecting temperature switch/DC motor
Material
Steel Plastic Aluminium
Noise level
76 dB(A)
Nominal voltage
12 V
Product details
Temperature switch 38-50°C Maximum temperature 120°C The motor must be switched via a relay
Insulation class
68
Long description
Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system.
Max. working flow
140 l/min
Fan outside diameter
385 mm
Max. working pressure
20 BAR
Cooling medium flow type
Suction
Connection thread diameter
1-1/4 Inch
Thermostat working temperature
38 - 50
Manufacturer
Emmegi

Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system.
Emmegi
Emmegi is a supplier of agricultural machinery components, including hydraulic cylinders and power transmission systems. The brand specializes in high-performance parts for tractors and harvesting equipment. Its products are known for precision engineering and long service life. Shop more than 329 genuine Emmegi spare parts.
