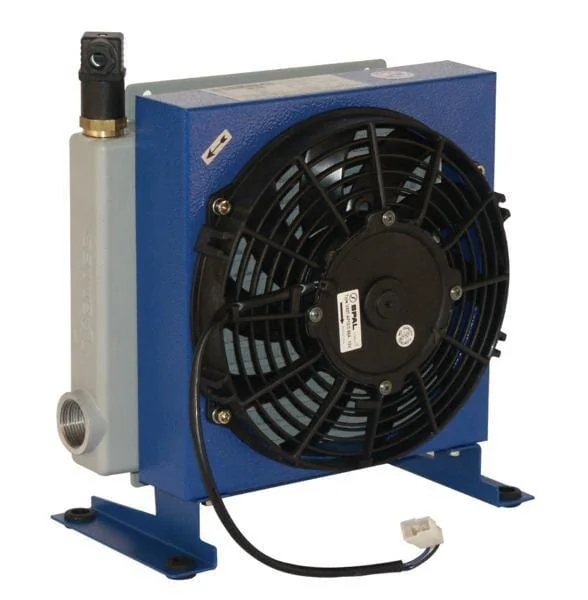

Emmegi - OK2050KBV24301 - Emmegi Bypass Oil Cooler 24V 48-60˚C

SKU: emmegi-ok2050kbv24301

Emmegi - OK2050KBV24301 - Emmegi Bypass Oil Cooler 24V 48-60˚C

€1,388.30€1,186.58 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,388.30

Brand
Emmegi
Part Numbers
OK2050KBV24301
Pros
Compact flush mounting Complete unit Increased efficiency Long component service life
Unit
Each
Depth
208 mm
Weight
24 kg
Includes
Aluminium radiator Support Impeller/electric motor, voltage according to version Temperature switch Connector for connecting temperature switch/DC motor
Material
Steel Plastic Aluminium
Noise level
79 dB(A)
Technical info
Oil coolers are used to improve the heat exchange between the oil and the environment. The coolers are fitted as standard with a thermostat 40-48ºC.
Nominal voltage
24 V
Product details
Temperature switch 38-50°C Maximum temperature 120°C The motor must be switched via a relay The OK2050 is equipped with two fans in the 12VDC and 24VDC versions
Insulation class
68
Long description
Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50°C thermostat. A controlled oil temperature increases the efficiency and lifetime of the components in the system.
Max. working flow
180 l/min
Fan outside diameter
280 mm
Max. working pressure
20 BAR
Cooling medium flow type
Suction
Connection thread diameter
1-1/4 Inch
Thermostat working temperature
38 - 50
Manufacturer
Emmegi

Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50°C thermostat. A controlled oil temperature increases the efficiency and lifetime of the components in the system.
Emmegi
Emmegi is a supplier of agricultural machinery components, including hydraulic cylinders and power transmission systems. The brand specializes in high-performance parts for tractors and harvesting equipment. Its products are known for precision engineering and long service life. Shop more than 329 genuine Emmegi spare parts.
