Erich Jaeger - 311038 - Short adapter

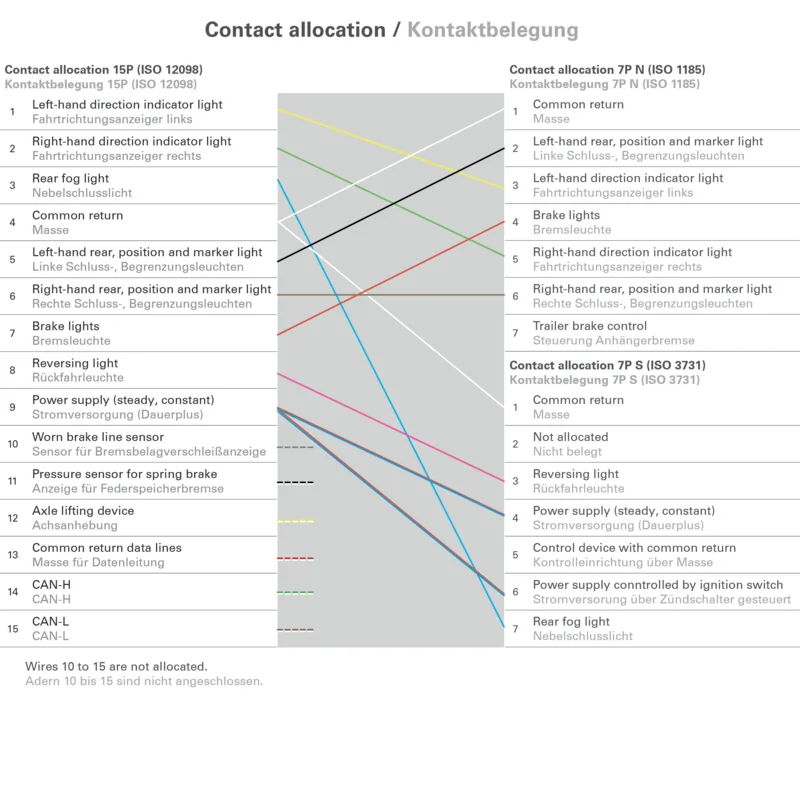

Description: with 15P/24V plug (ISO 12098) and 2x 7P/24V socket (ISO 1185 – Type N + ISO 3731 – Type S) Standards: ISO 12098, ISO 1185 – Type N, ISO 3731 – Type S Industry: Commercial vehicles Voltage: 24 V Housing color: Black Housing material: reinforced plastic Number of poles: 07, 15 Number of connected plugs: 1 Number of connected sockets: 2 Wiring diagram: Diagram 9 Pin assignment 15-pin (ISO 12098) Left turn signal Right turn signal Rear fog light Ground Left tail, marker lights Right tail, marker lights Brake light Reversing light Power supply (continuous positive) Sensor for brake pad wear indicator Indicator for spring brake Axle lift Ground for data line CAN-H CAN-L Pin assignment 7-pin N (ISO 1185) Ground Left tail, marker lights Left turn signal Brake light Right turn signal Right tail, marker lights Trailer brake control Pin assignment 7-pin S (ISO3731) Ground Not assigned Reversing light Power supply (continuous positive) Control device for ground Power supply controlled via ignition switch Rear fog light
