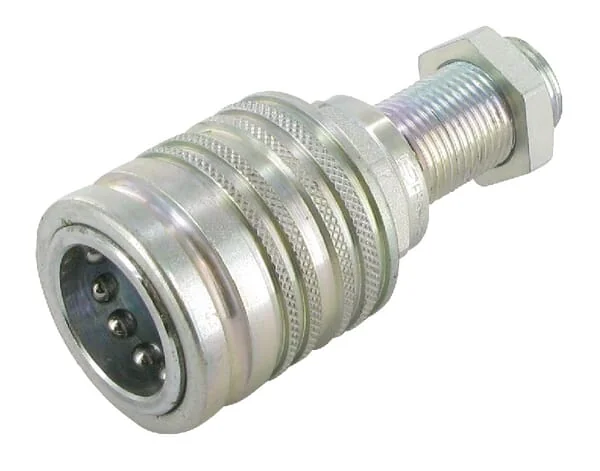

Faster - CPV0871815F - Faster Coupling housing 1/2-M18x1.5-12L-external

OEM Quality

SKU: faster-cpv0871815f

Faster - CPV0871815F - Faster Coupling housing 1/2-M18x1.5-12L-external

€18.22€15.57 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€18.22

Brand
Faster
Part Numbers
CPV0871815F
Unit
Each
Shape
Straight - 2 connection sides
Series
CPV
Weight
268,4 g
Material
Carbon steel
Body size
12,5 mm
Size code
BG 3
Properties
Push-pull principle Axial actuation of locking sleeve in both directions (double acting) Breakaway function Induction hardened stressed parts
Valve type
Poppet
ISO standard
7241-A
LTotal length
3,04 Inch
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
L1Total length
77,3 mm
Technical info
Couple by inserting the plug (one-handed operation)
Outside diameter
38 mm
Working pressure
250 BAR
Application range
For universal use Agricultural machines Mineral oil-based fluids
Surface treatment
White passivated
Connection 2, type
Thread
Flow rate at 2 bar
75 l/min
Connection no 1 type
Quick coupling
AConnection 2, diameter
12 mm
Max working temperature
125 °C
Connection no 1 diameter
38 mm
Connection no 1 hex size
27 mm24 mm
Min. working temperature
-25 °C
Connection 2, thread type
Metric
Connectable under pressure
No
Connection 2, thread pitch
1.50 mm
Connection no 1 thread type
Metric
Connection no 1 thread pitch
1.50 mm
Quick connection locking type
Radial balls
Quick connection working type
Push to connect
DConnection 2, thread diameter
M18
Connection no 1 thread diameter
18 mm
Connection 2, type - male/female
Male
Connection no 1 thread type code
07
Quick disconnection working type
Pull to disconnect
Connection no 1 type - male/female
Male
Manufacturer
Faster

Faster coupling housing with push-pull principle and double-acting axial actuation, made of carbon steel with white passivated finish. Designed for universal use with metric thread. Aftermarket part made to OEM quality. Part number CPV0871815F.
Faster
Faster produces agricultural machinery, including tillage equipment and tractor-mounted implements. The brand focuses on robust designs for heavy-duty farming tasks such as plowing and seeding. Its products are widely used in European agriculture for their reliability and performance. Shop more than 1,060 genuine Faster spare parts.
