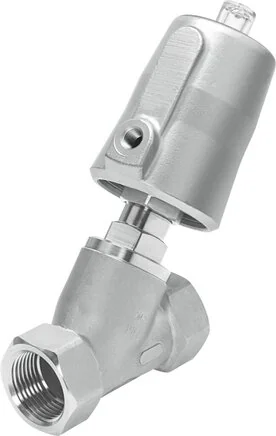

Festo - 1002509 - Angle Seat Valve

SKU: festo-1002509

Festo - 1002509 - Angle Seat Valve

€307.42€262.75 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€307.42

Brand
Festo
Medium
neutrale Flüssigkeiten
Flow Kv
16,5
Reset Mode
Mechanical spring
Control Type
Remote controlled
Material Note
RoHs compliant
Actuation Type
pneumatic
Fastening Type
pipe installation
Flow Direction
Not reversible
Lower valve seat, for gas and liquid media
Max. Viscosity
600
Valve Function
2/2 closed monostable
Line Connection
Threaded muff G1 1/2 acc. to DIN ISO 228
Exhaust Function
Cannot be throttled
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Nominal Width (mm)
35
Construction Set Up
Poppet valve with piston actuator
Nominal Pressure PN
16
Material - Seal Seat
PTFE
Pneumatic Connection
female thread G1/8
Installation Position
arbitrary
Medium Pressure (MPa)
0 to 0.6
Spindle Seal Material
NBR
LABS (PWIS) Conformity
VDMA24364-Zone III
Medium Temperature (°C)
-10 to 80
Operating Pressure (MPa)
0.6 to 1
Actuator Housing Material
Brass
Ambient Temperature (°C)
-10 to 60
Instrument Housing Material
red bronze
Corrosion Resistance Class KBK
1 - low corrosion stress
Material Number Instrument Housing
CC499K
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für Druckgeräte
CE Certificate (See Declaration Of Conformity)
to EU pressure vessel directive
EAN
4052568226107
Manufacturer
Festo
