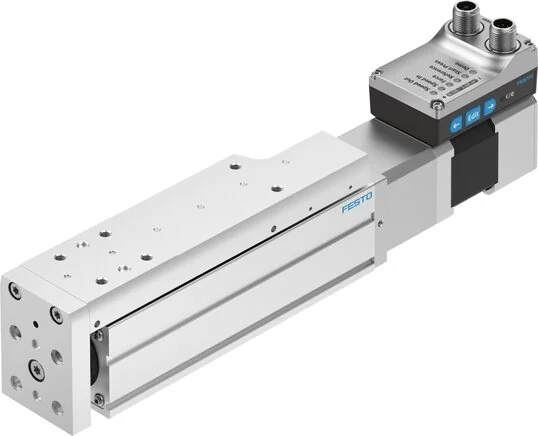

Festo - 8083817 - Mini Slide Unit

SKU: festo-8083817

Browse all parts
Festo - 8083817 - Mini Slide Unit

€1,643.46€1,404.67 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,643.46

Brand
Festo
Size
45
Guide
ball guide
Display
LED
KC-mark
KC-EMV
Motor Type
Step motor
Permission
RCM mark
Referencing
Festanschlag-Block negativ
Spindle Type
Ball screw drive
Feed Constant
10
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
10
Fastening Type
mit Zylinderstift
Reversing Play
150
Housing Material
Aluminium-Knetlegierung, eloxiert
Max. Line Length
20 m bei IO-Link Betrieb
Max. Speed (m/s)
0,25
Protection Class
III
Shock Resistance
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
Spindle Material
Roller bearing steel
Carriage Material
Aluminium-Knetlegierung, eloxiert
Max. Acceleration
5
Max. Force Fy (N)
1314
Max. Force Fz (N)
1314
Relative Humidity
0 - 90 %
Position Detection
For proximity switch
Repeatability (mm)
±0.015
Construction Set Up
mit integriertem Antrieb
IO-Link, Port Class
A
Max. Torque Mx (Nm)
8,14
Max. Torque My (Nm)
7,05
Max. Torque Mz (Nm)
7,05
Nominal Current (A)
3
Piston Rod Material
High-alloyed stainless steels
Protection Category
IP40
Protection Function
Temperaturüberwachung
Stroke Reserve (mm)
0
Working Stroke (mm)
100
Yoke Plate Material
Aluminium-Knetlegierung, eloxiert
Additional Functions
Integrierte Endlagenerkennung
Maintenance Interval
Lifetime lubrication
Max. Power Input (A)
3000
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Spindle Nut Material
Roller bearing steel
Installation Position
arbitrary
Spindle Diameter (mm)
10
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
120
Nominal Voltage DC (V)
24
Switching Logic Inputs
PNP (Positive switching)
Guide Carriage Material
Roller bearing steel
Properties Logic Inputs
Not galvanically separated
Switching Logic Outputs
PNP (Positive switching)
IO-Link, Number Of Ports
1
Parameterising Interface
Bedienoberfläche
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
60
IO-Link, Protocol Version
Device V 1.1
IO-Link, SIO Mode Support
yes
Logic Input Specification
in Anlehnung an IEC 61131-2, Typ 1
Rotor Position Transducer
Encoder absolut single turn
Speed "Speed Press" (m/s)
0,01
Work Area Logic Input (V)
24
IO-Link, Communication Mode
COM3 (230.4 kBaud)
IO-Link, Data Memory Needed
500
Insulation Protection Class
B
Max. Power Input Logic (mA)
0,3
Operation-readiness Display
LED
Reference Service Life (km)
5000
IO-Link, Service Data Unit IN
32 bit Speed
Logic Interface, Plug Pattern
992264
Quantity Digital Logic Inputs
2
Base Weight At 0 mm Stroke (g)
1238
Corrosion Resistance Class KBK
0 - No corrosion stressing
IO-Link, Connection Technology
Plug
IO-Link, Process Data Width IN
2 Bytes
Moving Mass At 0 mm Stroke (g)
212
Permitted Voltage Oscillations
± 15 %
IO-Link, Process Data Width OUT
2 Bytes
Voltage Supply, Connection Type
Plug
IO-Link, Minimum Cycle Time (ms)
1
Logic Interface, Connection Type
Plug
Power Supply, Connection Pattern
995989
Properties Digital Logic Outputs
Not galvanically separated
IO-Link, Process Data Contents IN
1 bit (State out)
IO-Link, Process Data Contents OUT
1 bit (Move Intermediate)
Static Load Factor Linear Guide (N)
5.630
Dynamic Load Factor Linear Guide (N)
3.240
Max. Radial Force On Drive Shaft (N)
340
Static Load Factor Fixed Bearing (N)
3.966
Dynamic Load Factor Fixed Bearing (N)
7.413
Logic Interface, Number Of Pins/wires
8
Voltage Supply, Connection Technology
M12x1, T-codiert nach EN 61076-2-111
Voltage Supply, Number Of Poles/wires
4
Logic Interface, Connection Technology
M12x1 A coded to EN 61076-2-101
Quantity Digital Logic Outputs 24 V DC
2
Weight Supplement Per 10 mm Stroke (g)
63
Max. Current Digital Logic Outputs (mA)
100
Static Load Factor Ball Screw Drive (N)
5.900
Dynamic Load Factor Ball Screw Drive (N)
3.200
Rotor Position Transducer Resolution (Bit)
16
Supplement Moved Mass Per 10 mm Stroke (g)
30
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Reference Value Effective Load, Vertical (kg)
6
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Reference Value Effective Load, Horizontal (kg)
6
Rotor Position Transducer Measurement Principle
Magnetic
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 9 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
3240
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
3240
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
20
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
17
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
17
EAN
4052568457716
Manufacturer
Festo
