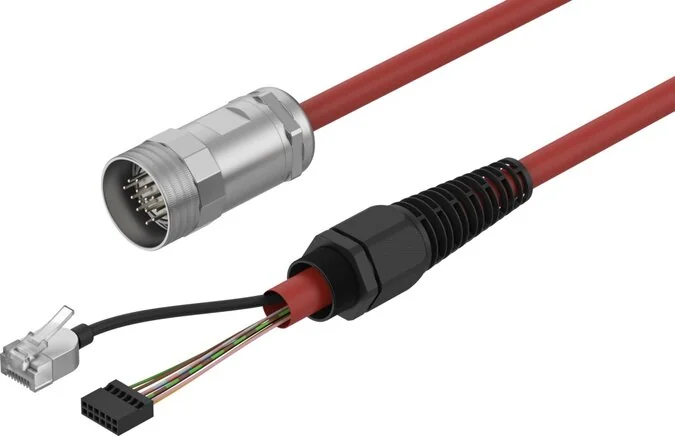

Festo - 8126917 - Connection Line

SKU: festo-8126917

Browse all parts
Festo - 8126917 - Connection Line

€574.90€491.37 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€574.90

Brand
Festo
Shielding
no
Cable Set Up
4 x (1 x 0,128 mm²) + 10 x 0,128 mm²
Material Note
RoHs compliant
Line Properties
Standard
Cable Length (m)
10
Line Designation
Without sign holder
Cable Diameter (mm)
8
Cable Shield Colour
red
Protection Category
IP65
Test Conditions Line
Prüfbedingungen nach Anfrage
Cable Sleeve Material
TPE-U(PUR)
LABS (PWIS) Conformity
VDMA24364-Zone III
Degree Of Contamination
3
Tolerance Cable Diameter
± 1 mm
Ambient Temperature (°C)
0 to 40
Bearing Temperature (°C)
-20 to 70
Insulation Sleeve Material
PP
Surge Voltage Strength (kV)
6
Corrosion Resistance Class KBK
0 - No corrosion stressing
Operating Voltage Range DC (V)
0 to 24
Electrical Connection 1, Design
Angular
Electrical Connection 2, Design
round
Nominal Operating Voltage DC (V)
24
Conductor - Nominal Cross-section
0,128
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
straight
Electrical Connection 2, Cable Output
straight
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
11,7
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 2, Fastening Type
geschraubt
Electrical Connection 1, Connection Type
Stecker und Buchsenleiste
Electrical Connection 2, Connection Type
Hybrid plug
Bending Radius, Moving Cable Placement (mm)
130
Electrical Connection 1, Connection Pattern
997347
Electrical Connection 2, Connection Pattern
997346
Electrical Connection 1, Occupied Pin / Wire
14
Electrical Connection 2, Occupied Pin / Wire
14
Bending Radius, Permanent Cable Placement (mm)
130
CE Certificate (See Declaration Of Conformity)
to EU low voltage directive
Electrical Connection 1, Connection Technology
RJ45 und Buchsenleiste 12 Pole, 2 Reihen
Electrical Connection 1, Number Of Pins / Wires
20
Electrical Connection 2, Number Of Pins / Wires
17
Ambient Temperature For Moving Cable Placements (°C)
0 to 40
EAN
4052568560942
Manufacturer
Festo
