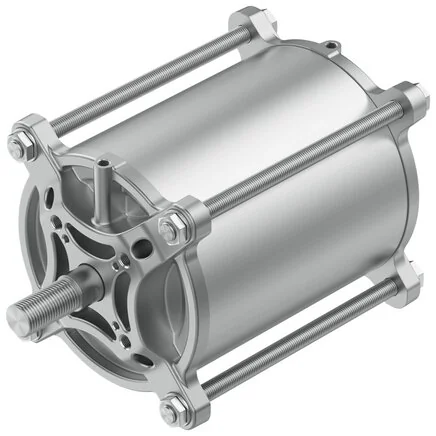

Festo - 8172158 - Linear Drive

SKU: festo-8172158

Browse all parts
Festo - 8172158 - Linear Drive

€4,515.84€3,859.69 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4,515.84

Brand
Festo
Variants
Verlängerte Kolbenstange
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
500
Nut Material
High-alloyed stainless steels
Material Note
RoHs compliant
Cover Material
Aluminium
Fastening Type
mit Stehbolzen
Piston Ø (mm)
250
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
ATEX Gas Category
II 2G
ATEX Dust Category
II 2D
Position Detection
For proximity switch
Construction Set Up
Zylinderrohr
Piston Rod Material
High-alloyed stainless steels
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Pneumatic Connection
G1/4
Installation Position
arbitrary
Material Static Seals
NBR
Cylinder Tube Material
Aluminium-Knetlegierung, gleiteloxiert
Ex Ambient Temperature
-20°C <= Ta <= +80°C
LABS (PWIS) Conformity
VDMA24364-Zone III
Principle Of Operation
double acting
Flange Drilling Pattern
F14
Tension Anchor Material
High-alloyed stainless steels
Operating Pressure (MPa)
0,25 to 0,8
Ambient Temperature (°C)
-20 to 80
Material Piston Rod Wiper
TPE-U(PU)
Position Drive Dimensions
250
Base Weight At 0 mm Stroke (g)
19296,54
Moving Mass At 0 mm Stroke (g)
5600,4
Standard Connection To Fitting
ISO 5210
Ex Ignition Protection Type Gas
Ex h IIC T4 Gb
Ex Ignition Protection Type Dust
Ex h IIIC T120°C Db
Nominal Operating Pressure (MPa)
0,6
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
6
Weight Supplement Per 10 mm Stroke (g)
335,51
Ex Protection Approval Outside Of The EU
EPL Gb (GB)
Supplement Moved Mass Per 10 mm Stroke (g)
105,31
UKCA Marking (See Declaration Of Conformity)
nach UK EX Vorschriften
Air Consumption On Return Stroke Per 10 mm (l)
3,348
CE Certificate (See Declaration Of Conformity)
to EU EX protection directive (ATEX)
Air Consumption On Advance Stroke Per 10 mm (l)
3,436
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
28698
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
29452
EAN
4052568610470
Manufacturer
Festo
