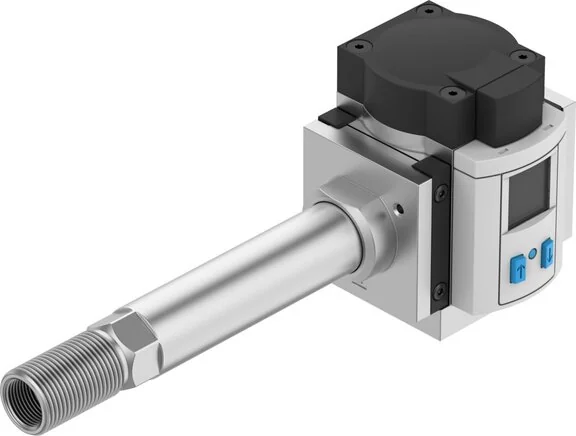

Festo - 8181244 - Flow Sensor

SKU: festo-8181244

Festo - 8181244 - Flow Sensor

€1,333.62€1,139.85 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,333.62

Brand
Festo
Report
IO-Link
Permission
RCM mark
Display Type
Illuminating LCD Multiple
Material Note
RoHs compliant
Pressure Drop
100
Control Output
2 x PNP or 2 x NPN switchable
Fastening Type
pipe installation
Flow Direction
von links nach rechts
Analogue Output
1 - 5 V
Setting Options
Via display and buttons
Switch Function
Window comparator or threshold comparator, adjustable
Housing Material
PA reinforced
Operating Medium
Nitrogen
Protection Class
III
Tamper-proof Fuse
PIN code
IO-Link, Port Type
Class A
Measured Parameter
Volumenstrom
Overload Resistant
Available
Accuracy Flow Value
± (3% o.m.v. + 0,3% FS)
Measurement Process
Heat Loss
Presentable Unit(s)
°F
Protection Category
IP65
IO-Link, Revision ID
V1.1
Max. Line Length (m)
30
Pneumatic Connection
G1/2
Installation Position
arbitrary
Measurement Principle
Thermic
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
IO-Link, Device Profile
Smart Sensor - SSP 4.1.3
Overload Pressure (MPa)
2
Max. Output Current (mA)
100
Medium Temperature (°C)
0 to 50
Operating Pressure (MPa)
1,6
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
IO-Link, SIO Mode Support
yes
Nominal Temperature (°C)
23
Settings Range Hysteresis
0 to 90
IO-Link, Transmission Rate
COM3
Switching Element Function
Opener/closer switchable
IO-Link, Data Memory Needed
1000
Reverse Polarity Protection
for all electrical connections
IO-Link, Service Data Unit IN
Pneumatischer Leistungs-Messwert 32 bit
Repeatability Clamp In ± %FS
0,8
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
15 to 30
Settings Range Threshold Value
0 to 100
Accuracy Temperature In ± (°C)
5
Flow Measurement Range End Value
1000
IO-Link, Minimum Cycle Time (ms)
1,5
IO-Link, Process Data Contents IN
Volumen- / Masse-Puls 1 bit SSC
Pressure Influence Span In ± %FS
0,5
Repeatability Null Point In ± %FS
0,2
Flow Characteristic Curve End Value
1000
Min. Load Resistance Voltage Output
20
Temperature Coefficient In ± %FS/K
0,05
Accuracy Of Pressure Value In ± %FS
1,5
Flow Measurement Range Starting Value
10
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
Plug
Flow Characteristic Curve Starting Value
0
IO-Link, Process Data Length Input (Bit)
96
Repeat Accuracy Pressure Value In ± %FS
0,3
Temperature Coefficient Clamp (± %FS/K)
type 0,1%FS/K
IO-Link, Process Data Length Output (Bit)
0
Max. Load Resistance Current Output (Ohm)
500
Output Characteristic Curve End Value (V)
10
Pressure Measurement Range End Value (MPa)
1,6
Electrical Connection 1, Connection Pattern
995386
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Temperature Measurement Range End Value (°C)
100
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Output Characteristic Curve Starting Value (V)
0
Electrical Connection 1, Number Of Pins / Wires
5
Pressure Measurement Range Starting Value (MPa)
0
Temperature Characteristic Curve End Value (°C)
100
Temperature Measurement Range Stating Value (°C)
0
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
Temperature Characteristic Curve Starting Value (°C)
0
EAN
4052568629489
Manufacturer
Festo
