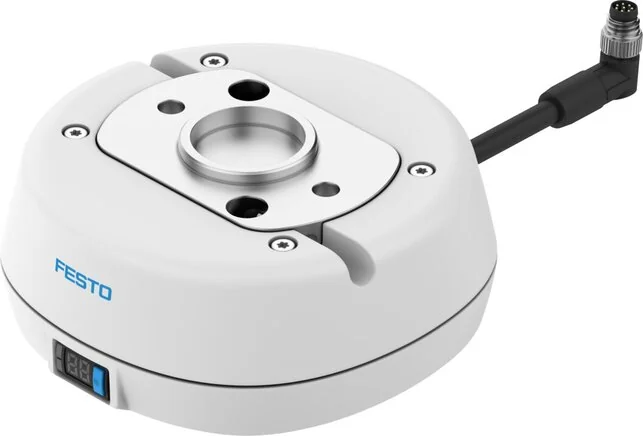

Festo - 8205190 - Vacuum Suction Nozzle

SKU: festo-8205190

Festo - 8205190 - Vacuum Suction Nozzle

€2,074.64€1,773.20 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,074.64

Brand
Festo
Report
IO-Link
Max. Vacuum
92
Display Type
2-stellig
Material Note
RoHs compliant
Power-on Time
100%
Control Output
PNP/NPN switchable
Fastening Type
nach ISO 9409
Seals Material
NBR
Valve Function
closed
Filter Material
POM
Filter Porosity
40
Line Properties
Robot friendly
Screws Material
Steel
Setting Options
Via display and buttons
Switch Function
Freely programmable
Cable Length (m)
0,3
Housing Material
PA reinforced
IO-Link, Profile
Smart sensor profile
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
max. 93 % bei 40 °C
Silencer Material
PE
Tamper-proof Fuse
PIN code
Vacuum Connection
G1/8
Measured Parameter
Druck
Accuracy In ± % FS
1,5
Banjo Bolt Material
Aluminium wrought alloy
Cable Diameter (mm)
5
Cable Shield Colour
black
Construction Set Up
Mensch-Roboter-Kollaboration (MRK)
IO-Link, Port Class
A
Integrated Function
Schalldämpfer geschlossen
Jet Nozzle Material
Aluminium wrought alloy
Measurement Process
Piezoresistive pressure sensor with display
Protection Category
IP40
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Cable Sleeve Material
PVC
Hand Assist Actuation
None
Installation Position
arbitrary
Measurement Principle
Piezoresistive
Ejector Characteristic
Standard
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
für Schlauch Außen-Ø 6 mm
Pneumatic Connection 3
Silencer open
Capture Nozzle Material
POM
Max. Output Current (mA)
100
Medium Temperature (°C)
0 to 50
Operating Pressure (MPa)
0,2 to 0,7
Short Circuit Resistance
yes
Tolerance Cable Diameter
± 1 mm
Ambient Temperature (°C)
0 to 50
Coil Characteristic Value
24 V DC: 1,0 W
IO-Link, Function Classes
Teach channel
IO-Link, Protocol Version
Device V 1.1
IO-Link, SIO Mode Support
yes
Regulation Screw Material
Steel
Connection Thread Material
Aluminium-Knetlegierung, eloxiert
Switching Element Function
Opener/closer switchable
Switching Status Indicator
LED yellow
IO-Link, Communication Mode
COM2 (38.4 kBaud)
IO-Link, Data Memory Needed
0,5
Reverse Polarity Protection
yes
Corrosion Resistance Class KBK
2 - moderate corrosion stress
IO-Link, Process Data Width IN
2 Bytes
Operating Voltage Range DC (V)
21.6 to 26.4
Construction Type Silencer Type
open
Electrical Connection 1, Design
round
IO-Link, Process Data Width OUT
0 Bytes
Nominal Width Laval Nozzle (mm)
0,95
IO-Link, Minimum Cycle Time (ms)
3
Nominal Operating Pressure (MPa)
0,4
Pressure Measurement Range (MPa)
-0,1 to 0
Reproducibility Shifting Time FS
0,3
IO-Link, Process Data Contents IN
2 bit BDC (Drucküberwachung)
Note On Operating And Control Medium
Oiled operation not possible
Electrical Connection 1, Cable Output
Angled
Electrical Connection: Input, Function
Vakuumerzeugung
Electrical Connection: Outlet, Function
Digital output
Electrical Connection 1, Connection Type
Kabel mit Dose
Operating Pressure For Max. Vacuum (MPa)
0,41
Electrical Connection 1, Connection Pattern
997559
Electrical Connection 1, Occupied Pin / Wire
5
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für EMV
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
8
Electrical Connection 1, Tightening Torque (Nm)
0,2
Max. Suction Volume Flow Rate Against Atmosphere
18
Noise Level For Nominal Operating Pressure (dB(A))
55
Operating Pressure For Max. Suction Volume Flow (MPa)
0,4
Noise Performance Level For Nominal Operating Pressure (dB(A))
66
Air Supply Time At Nominal Operating Pressure With Ejector Pulse (s)
1
EAN
4052568825072
Manufacturer
Festo
