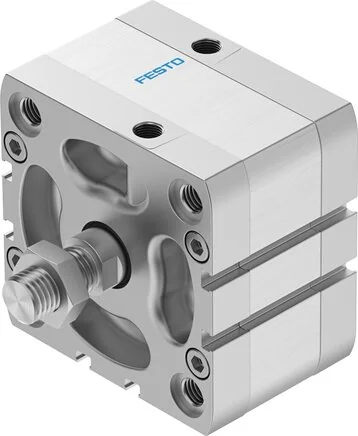

Festo - ADN-80-10-A-PPS-A-572727 - Compact Cylinder

SKU: festo-adn-80-10-a-pps-a-572727

Browse all parts
Festo - ADN-80-10-A-PPS-A-572727 - Compact Cylinder

€248.17€212.11 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€248.17

Brand
Festo
Variants
One-sided piston rod
Dampening
selbsteinstellende pneumatische Endlagendämpfung
Stroke (mm)
10
Material Note
RoHs compliant
Cover Material
Aluminium-Druckguss, beschichtet
Fastening Type
With Accessories
Piston Rod End
Male thread
Piston Ø (mm)
80
Seals Material
TPE-U(PUR)
Moving Mass (g)
477
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M16x1,5
Position Detection
For proximity switch
Piston Rod Material
High-alloyed steel
Complies To Standard
ISO 21287
Pneumatic Connection
G1/8
Dampening Length (mm)
7,5
Installation Position
arbitrary
Cylinder Tube Material
Aluminium-Knetlegierung, gleiteloxiert
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Material Collar Screws
Steel
Principle Of Operation
double acting
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
-20 to 80
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
8
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
2827
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
3016
EAN
4052568219482
Manufacturer
Festo

Be the first to write a review!

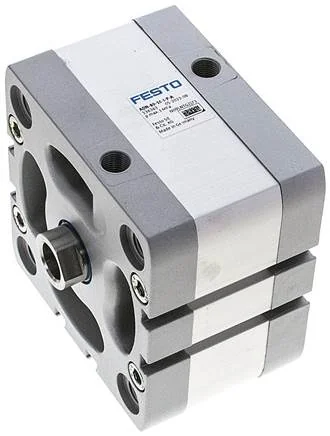

Similar items you might like
