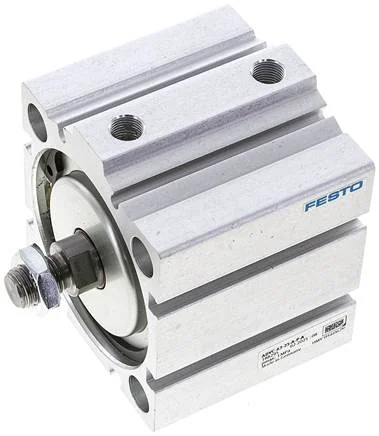

Festo - ADVC-63-25-A-P-A-188295 - Short Stroke Cylinder

SKU: festo-advc-63-25-a-p-a-188295

Browse all parts
Festo - ADVC-63-25-A-P-A-188295 - Short Stroke Cylinder

€289.45€247.39 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€289.45

Brand
Festo
Dampening
P: Elastic silencer rings / plates double-sided
Stroke (mm)
25,0
Cover Material
Aluminium wrought alloy, anodized
Fastening Type
With throughway bores, With Accessories, Selectively:
Seals Material
TPE-U(PU)
Moving Mass (g)
174,00
Housing Material
Aluminium wrought alloy, anodized
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
ISO 6431, VDMA 24562, hole pattern
Position Detection
For proximity switch
Construction Set Up
Piston, piston rod
Piston Rod Material
High-alloyed steel
Material Information
Copper and PTFE-free
Piston Diameter (mm)
63
Pneumatic Connection
G1/8
Installation Position
arbitrary
Principle Of Operation
double acting
Operating Pressure (bar)
0.6 to 10
Ambient Temperature (°C)
-20 to 80
Corrosion Resistance Class KBK
1 - low corrosion stress
Theoretical Force At 6 bar, Flow (N)
1.870,0
Theoretical Force At 6 bar, Return Flow (N)
1.750,0
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568148997
Manufacturer
Festo
