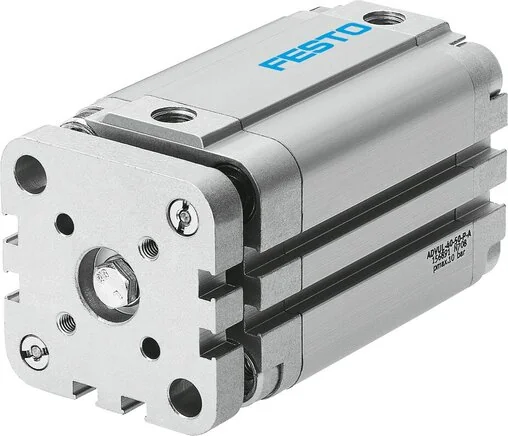

Festo - ADVUL-100-25-P-A-156924 - Compact Cylinder

SKU: festo-advul-100-25-p-a-156924

Browse all parts
Festo - ADVUL-100-25-P-A-156924 - Compact Cylinder

€1,125.83€962.25 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,125.83

Brand
Festo
Variants
One-sided piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
25
Cover Material
Aluminium wrought alloy
Fastening Type
With Accessories
Piston Ø (mm)
100
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For proximity switch
Construction Set Up
Kolbenstange
Piston Rod Material
High-alloyed steel
Pneumatic Connection
G1/4
Installation Position
arbitrary
Cylinder Tube Material
Aluminium wrought alloy
Dynamic Seals Material
TPE-U(PU)
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Material Collar Screws
Zinc plated steel
Principle Of Operation
double acting
Anti-twist Lock / Guide
Guide rod with yoke
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
-20 to 80
Base Weight At 0 mm Stroke (g)
3316
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Moving Mass At 0 mm Stroke (g)
1133
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
1
Weight Supplement Per 10 mm Stroke (g)
116
Supplement Moved Mass Per 10 mm Stroke (g)
43
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
4418
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
4712
EAN
4052568121747
Manufacturer
Festo
