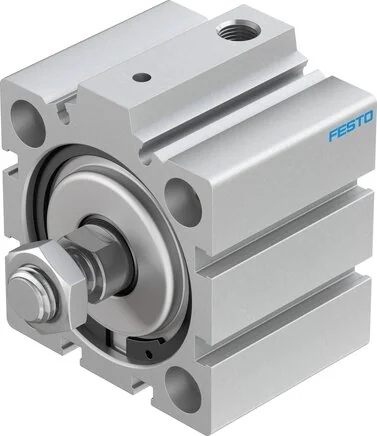

Festo - AEVC-50-10-A-P-A-188256 - Short Stroke Cylinder

SKU: festo-aevc-50-10-a-p-a-188256

Browse all parts
Festo - AEVC-50-10-A-P-A-188256 - Short Stroke Cylinder

€217.28€185.71 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€217.28

Brand
Festo
Dampening
P: Elastic silencer rings / plates double-sided
Stroke (mm)
10,0
Cover Material
Aluminium wrought alloy, anodized
Fastening Type
With throughway bores, With Accessories, Selectively:
Seals Material
TPE-U(PU)
Moving Mass (g)
116,00
Housing Material
Aluminium wrought alloy, anodized
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
ISO 6431, VDMA 24562, hole pattern
Position Detection
For proximity switch
Construction Set Up
Piston, piston rod
Piston Rod Material
High-alloyed steel
Material Information
Copper and PTFE-free
Piston Diameter (mm)
50
Pneumatic Connection
G1/8
Installation Position
arbitrary
Principle Of Operation
Pressing, single action
Operating Pressure (bar)
1 to 10
Ambient Temperature (°C)
-20 to 80
Corrosion Resistance Class KBK
1 - low corrosion stress
Theoretical Force At 6 bar, Flow (N)
1.121,0
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
Spring Return Force For Retracted Piston Rod (N)
40
EAN
4052568148614
Manufacturer
Festo
