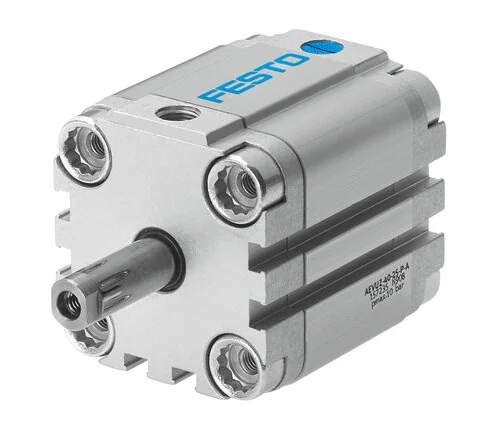

Festo - AEVUZ-100-15-P-A-157249 - Compact Cylinder

SKU: festo-aevuz-100-15-p-a-157249

Browse all parts
Festo - AEVUZ-100-15-P-A-157249 - Compact Cylinder

€811.69€693.75 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€811.69

Brand
Festo
Variants
One-sided piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
15
Cover Material
Aluminium wrought alloy
Fastening Type
With Accessories
Piston Rod End
Female thread
Piston Ø (mm)
100
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M12
Position Detection
For proximity switch
Construction Set Up
Kolbenstange
Piston Rod Material
High-alloyed steel
Pneumatic Connection
G1/4
Installation Position
arbitrary
Cylinder Tube Material
Aluminium wrought alloy
Dynamic Seals Material
TPE-U(PU)
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Material Collar Screws
Zinc plated steel
Principle Of Operation
ziehend
Operating Pressure (MPa)
0,08 to 1
Ambient Temperature (°C)
-20 to 80
Base Weight At 0 mm Stroke (g)
2797
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Moving Mass At 0 mm Stroke (g)
614
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
1
Weight Supplement Per 10 mm Stroke (g)
177
Supplement Moved Mass Per 10 mm Stroke (g)
38
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
4222
EAN
4052568124618
Manufacturer
Festo
