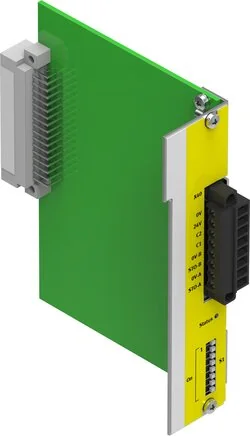

Display
LED green / yellow
Fastening Type
Plug-in module for CMMP-AS... -M3
Safety Function
Safe switched off torque (STO)
Relative Humidity
5 - 95 %, Not condensing
Certification Body
01/205/5165.02/19, TÜV Rheinland
Protection Category
IP20, In mounted condition
Dimensions W x L x H
112.6 mm x 87.2 mm x 28.3 mm
Material Information
LABS containing materials included, RoHs compliant
Design Digital Output
Potential free signal contact
Electrical Connection
Screw clamp, Plug straight
Installation Position
arbitrary
Performance Level (PL)
Safe switched off torque (STO) / category 4 performance level e
Properties Logic Inputs
Galvanically separated
Hardware Error Tolerance
1
Short Circuit Resistance
no
Ambient Temperature (°C)
0 to 40
Bearing Temperature (°C)
-25 to 55
Debounce Time Inputs (ms)
0,3
Logic Input Specification
Depending on IEC 61131-2
Work Area Logic Input (V)
19.2 to 28.8
Proof Test Interval (years)
20
LED Display Product Specific
Normal mode (Green)/ STO (Yellow)
Safety Integrity Level (SIL)
Safe switched off torque (STO) / SIL 3 / SILCL 3
Permitted Range Logic Voltage
± 20 %
Quantity Digital Logic Inputs
2
SFF Safe Failure Fraction (%)
99,2
Max. Nominal Input Current (A)
0,030
Connection Cross-section (mm²)
0.25 to 0.5
Diagnose Degree Of Coverage (%)
97,0
Digital Outputs, Switching Logic
Contact closes when the torque is safely switched off (STO)
Nominal Current Logic Supply (A)
0,02
Nominal Operating Voltage DC (V)
24
Nominal Voltage Logic Supply DC (V)
24
Probability Of Failure Per Hour (1/h)
1.27e-010
Current Carrying Capacity At 40°C (A)
0,2
PED (Probability Of Failure On Demand)
2.3e-005
Max. Current Digital Logic Outputs (mA)
200
Current Carrying Capacity Per Output (mA)
200
CE Certificate (See Declaration Of Conformity)
nach EU-EMV-Richtlinie, nach EU-Maschinen-Richtlinie, nach EU-RoHS-RL
Power Input Logic Supply Without Parking Brake (A)
0,03
Certified For Safety Function To ISO 13849 And IEC 61508 (SIL)
Product can be inserted into SRP/CS to SIL 3 High Demand
