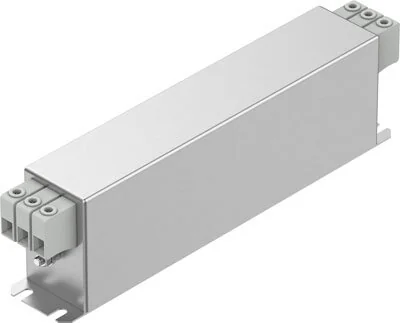

Festo - CAMF-C6-F-C16-11A-8096868 - Mains Filter

SKU: festo-camf-c6-f-c16-11a-8096868

Browse all parts
Festo - CAMF-C6-F-C16-11A-8096868 - Mains Filter

€400.51€342.32 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€400.51

Brand
Festo
Fastening Type
Assembly plate, screwed
Protection Category
IP20
Dimensions W x L x H
45 mm x 235 mm x 70 mm
Material Information
ENEC, UL - recognised (OL), c UL - Recognized (OL)
LABS containing materials included, RoHs compliant
Installation Position
Horizontal
Insulation Voltage (V)
2.650
Network Frequency (Hz)
0 to 60
Short Circuit Resistance
no
Ambient Temperature (°C)
-25 to 100
Bearing Temperature (°C)
-25 to 100
Operating Voltage Range AC (V)
0 to 520
Electrical Connection 1, Function
Spannungsversorgung
Electrical Connection 2, Function
Spannungsversorgung
Current Carrying Capacity At 40°C (A)
16
Electrical Connection 1, Connection Type
Multi tube holder
Electrical Connection 2, Connection Type
Multi tube holder
Electrical Connection 1, Occupied Pin / Wire
3
Electrical Connection 2, Occupied Pin / Wire
3
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-RL
Electrical Connection 1, Connection Technology
Screw clamp
Electrical Connection 2, Connection Technology
Screw clamp
Electrical Connection 1, Number Of Pins / Wires
3
Electrical Connection 2, Number Of Pins / Wires
3
Electrical Connection 1, Conductor Cross Section (mm²)
6 to 10
Electrical Connection 2, Conductor Cross Section (mm²)
6 to 10
EAN
4052568298791
Manufacturer
Festo
