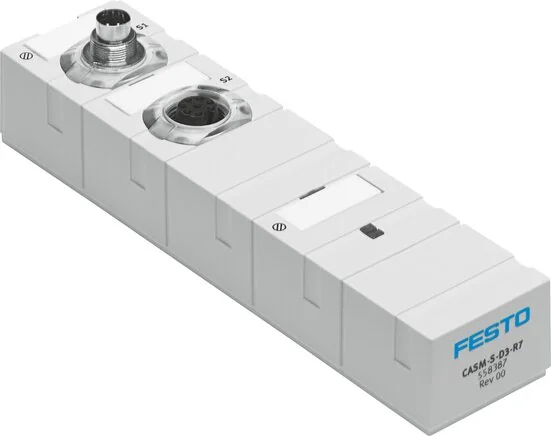

Festo - CASM-S-D3-R7-558387 - Sensor Interface

SKU: festo-casm-s-d3-r7-558387

Festo - CASM-S-D3-R7-558387 - Sensor Interface

€486.76€416.03 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€486.76

Brand
Festo
Permission
RCM mark
Fastening Type
With throughway bores
Residual Ripple
4 Vss
Housing Material
PBT reinforced
Control Interface
Digital, CAN bus with Festo protocol, Without closing resistance
Diagnose Function
Display via LED
Relative Humidity
95 %, Not condensing
Installation Position
arbitrary
LABS (PWIS) Conformity
IP67, Push in connector in plugged-in condition
Ambient Temperature (°C)
0 to 55
Bearing Temperature (°C)
-20 to 70
Voltage Supply Requirement
Funktionskleinspannung mit sicherer Trennung (PELV)
Power Blackout Bridging (ms)
10
Permitted Voltage Oscillations
± 25 %
Nominal Operating Voltage DC (V)
24
Electrical Connection: Measuring System
M12, 8 pin, socket / container / ….
Power Input In Nominal Operating Voltage
40 - 50 mA
Oscillation Strength To DIN/IEC 68 Part 2-6
Tested to severity class 2
UKCA Marking (See Declaration Of Conformity)
1 - low corrosion stress
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Continuous Impact Strength DIN&EC 68 Parts 2-82
Tested to severity class 2
EAN
4052568016227
Manufacturer
Festo
