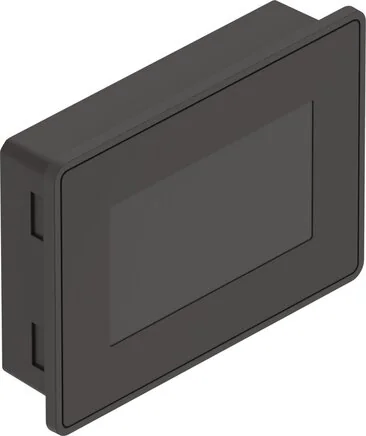

Festo - CDPX-X-B-W-4-8155213 - Operating Device

SKU: festo-cdpx-x-b-w-4-8155213

Browse all parts
Festo - CDPX-X-B-W-4-8155213 - Operating Device

€948.83€810.97 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€948.83

Brand
Festo
Display
mit Hintergrundbeleuchtung
CPU Data
256 MB RAM
Permission
c UL us - Listed (OL)
Width (mm)
147
Height (mm)
107
Length (mm)
34
Display Size
"4,3"""
Display Type
TFT colour
Material Note
RoHs compliant
Fastening Type
Front panel integration
Realtime Clock
yes
Back-up Battery
Superkondensator
Quantity Colours
64 k
Relative Humidity
Not condensing
Display Properties
Touch screen
Display Resolution
480x272 pixels
Protection Category
IP66
Additional Functions
Kommunikationsfunktion RS232
Programming Software
Designer Studio
Integration Depth (mm)
29
LABS (PWIS) Conformity
VDMA24364-Zone III
USB Interface, Function
Dateiübertragung
Deviation Realtime Clock
< 100 ppm bei 25°C
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
-20 to 70
Ethernet Interface, Function
Programmierung
Operating Voltage Range DC (V)
10 to 32
USB Interface, Connection Type
socket / container / ….
Max. Panel Front Thickness (mm)
5
Nominal Operating Voltage DC (V)
24
Ethernet Interface, Transfer Speed
10/100 Mbit/s
Ethernet Interface, Connection Type
socket / container / ….
USB Interface, Connection Technology
USB 2.0 Typ A
Information About Protection Category
IP66 frontseitig
Ethernet Interface, Connection Technology
RJ45
Ethernet Interface, Number Of Pins / Wires
8
Power Input In Nominal Operating Voltage (A)
0,25
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
EAN
4052568587109
Manufacturer
Festo
