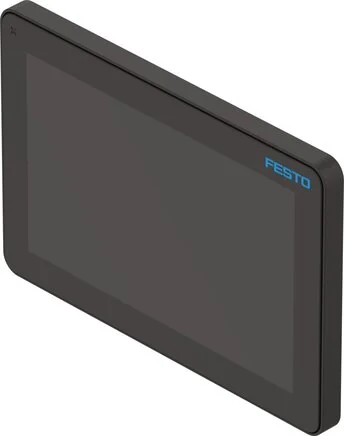

Festo - CDPX-X-E2-W-10-EX2-8155221 - Operating Device

SKU: festo-cdpx-x-e2-w-10-ex2-8155221

Browse all parts
Festo - CDPX-X-E2-W-10-EX2-8155221 - Operating Device

€3,440.36€2,940.48 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€3,440.36

Brand
Festo
Display
mit Hintergrundbeleuchtung
CPU Data
1 GB RAM
Permission
c UL us - Listed (OL)
Width (mm)
265
Height (mm)
138
Length (mm)
34
Display Size
"10,1"""
Display Type
TFT colour
Material Note
RoHs compliant
Fastening Type
VESA-Schnittstelle
Realtime Clock
yes
Back-up Battery
wiederaufladbare Lithium Batterie
Quantity Colours
16 M
Relative Humidity
Not condensing
Certification Body
UL E245518
Display Properties
Touch screen
Display Resolution
1280x800 Pixel
Protection Category
IP67
Programming Software
Designer Studio
Integration Depth (mm)
17
LABS (PWIS) Conformity
VDMA24364-Zone III
Supported PLC Protocols
ModbusTCP Server
USB Interface, Function
Dateiübertragung
Deviation Realtime Clock
< 100 ppm bei 25°C
Ambient Temperature (°C)
-20 to 55
Bearing Temperature (°C)
-30 to +80
Ethernet Interface, Function
Spannungsversorgung PoE
USB Interface, Connection Type
socket / container / ….
Max. Panel Front Thickness (mm)
17
Electrical Power Consumption (W)
14
Ethernet Interface, Specification
IEEE 802.3 af/at
Ethernet Interface, Transfer Speed
10/100 Mbit/s
Ethernet Interface, Connection Type
socket / container / ….
USB Interface, Connection Technology
USB 2.0 Typ A
Information About Protection Category
In mounted condition
Ex Protection Approval Outside Of The EU
Class I, Div. 2 (US)
Ethernet Interface, Connection Technology
RJ45
Ethernet Interface, Number Of Pins / Wires
8
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
EAN
4052568587246
Manufacturer
Festo
