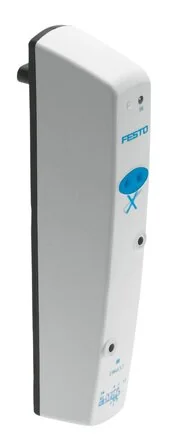

Festo - CDVI5.0-MT2H-5/3ES-196653 - Solenoid Valve

SKU: festo-cdvi5-0-mt2h-5-3es-196653

Browse all parts
Festo - CDVI5.0-MT2H-5/3ES-196653 - Solenoid Valve

€376.49€321.79 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€376.49

Brand
Festo
B-value
0.5
C-value
1,54
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
Screwable
Flow Direction
Reversible
Seals Material
TPE-O
Valve Function
5/3 vented
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
5
Shifting Time (ms)
17
Construction Set Up
Piston pusher
Hand Assist Actuation
tentative
Shifting Time On (ms)
12
Control Pressure (bar)
3 to 8
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
Connection plate
Pneumatic Connection 2
Connection plate
Pneumatic Connection 3
Connection plate
Pneumatic Connection 4
Connection plate
Pneumatic Connection 5
Connection plate
Shifting Time Off (ms)
25
Medium Temperature (°C)
-5 to 50
Operating Pressure (bar)
-0.9 to 10
Ambient Temperature (°C)
-5 to 50
Corrosion Resistance Class KBK
3 - severe corrosion stress
Exhaust Control Connection 82/84
Connection plate
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
400
EAN
4052568159436
Manufacturer
Festo
