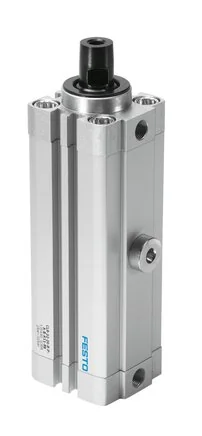

Festo - CLR-32-20-L-P-A-B-K11-R8-535491 - Linear Swivel Clamp

SKU: festo-clr-32-20-l-p-a-b-k11-r8-535491

Browse all parts
Festo - CLR-32-20-L-P-A-B-K11-R8-535491 - Linear Swivel Clamp

€653.05€558.16 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€653.05

Brand
Festo
Variants
Staubschutz
Dampening
elastische Dämpfungsringe/-platten beidseitig
Swivel Angle
90 deg ± 2 deg
Cover Material
beschichtet
Fastening Type
With Accessories
Piston Ø (mm)
32
Seals Material
TPE-U(PU)
Wiper Material
PPS
Housing Material
gleiteloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Swivel Direction
Left
Piston Rod Thread
M8
Total Stroke (mm)
38
Position Detection
For proximity switch
Construction Set Up
Zylinderrohr
Piston Rod Material
High-alloyed stainless steels
Clamping Stroke (mm)
20
Pneumatic Connection
G1/8
Installation Position
arbitrary
Cylinder Tube Material
gleiteloxiert
LABS (PWIS) Conformity
VDMA24364-B2-L
Material Collar Screws
verzinkt
Principle Of Operation
double acting
Operating Pressure (bar)
2 to 10
Ambient Temperature (°C)
-10 to 80
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Tightening Torque Clamping Finger Screw (Nm)
24,0
Effective Clamping Force At 0.2 MPa (2 bar, 29 psi) (N)
111
Effective Clamping Force At 0.4 MPa (4 bar, 58 psi) (N)
216
Effective Clamping Force At 0.6 MPa (6 bar, 87 psi) (N)
313
Theoretical Clamping Force At 0.6 MPa (6 bar, 87 psi) (N)
362
EAN
4052568169053
Manufacturer
Festo
