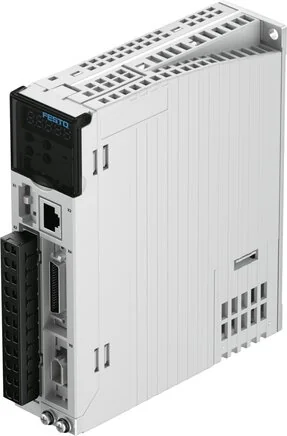

Festo - CMMB-AS-04-5105643 - Motor Controller

SKU: festo-cmmb-as-04-5105643

Browse all parts
Festo - CMMB-AS-04-5105643 - Motor Controller

€571.64€488.58 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€571.64

Brand
Festo
Display
Seven segment display
Permission
c UL us - Listed (OL)
Material Note
RoHs compliant
Fastening Type
Permanently screwed
Peak Performance
4500
Process Coupling
für 32 Verfahrsätze
Relative Humidity
5 - 95 %
Nominal Current (A)
4,5
Protection Category
IP20
Output Frequency (Hz)
0 to 400
LABS (PWIS) Conformity
VDMA24364-Zone III
Network Frequency (Hz)
50 to 60
Degree Of Contamination
2
Output Voltage Range AC
3x 0 - 240 V
Braking Resistance (Ohm)
300
Parameterising Interface
RS232 (38400 Baud)
Ambient Temperature (°C)
0 to 40
Bearing Temperature (°C)
-10 to 70
Work Area Logic Input (V)
12,5 to 30
Input Voltage Range AC (V)
200 to 240
Nominal Output Current (A)
4,5
Impedance Target Value Input
350
Work Area Target Value Input
± 10 V
Permitted Range Logic Voltage
± 10 %
Quantity Digital Logic Inputs
7
Max. Peak Current Duration (s)
5
Nominal Performance Controller
400
Permitted Voltage Oscillations
± 10 %
Properties Target Value Inputs
konfigurierbar für Strom
Phase Nominal Operating Voltage
1-phase
Nominal Operating Voltage AC (V)
230
Properties Digital Logic Outputs
teilweise frei konfigurierbar
Encoder Input Interface, Function
Encodersignal Drehzahlsollwert.
Braking Resistance, External (Ohm)
75
Encoder Output Interface, Function
Sollwertvorgabe für nachgeschaltetem Slave-Antrieb.
Encoder Input Interface, Properties
Nikon A-Format
Nominal Voltage Logic Supply DC (V)
24
Encoder Output Interface, Properties
Auflösung 65536 ppr
Peak Current Per Phase, Effective (A)
15
Quantity Analogue Target Value Inputs
2
Quantity Digital Logic Outputs 24 V DC
5
Max. Current Digital Logic Outputs (mA)
100
Max. Intermediate Circuit Voltage DC (V)
300
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Power Input Logic Supply Without Parking Brake (A)
0,5
EAN
4052568419899
Manufacturer
Festo
