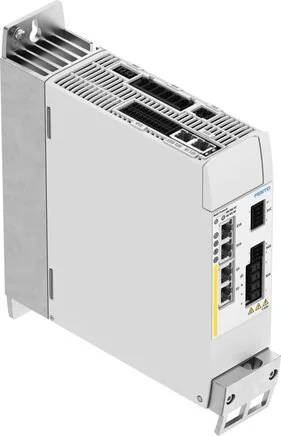

Festo - CMMT-AS-C5-11A-P3-MP-S3-8151395 - Servo Drive Controller

SKU: festo-cmmt-as-c5-11a-p3-mp-s3-8151395

Browse all parts
Festo - CMMT-AS-C5-11A-P3-MP-S3-8151395 - Servo Drive Controller

€1,992.80€1,703.25 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,992.80

Brand
Festo
Display
LED green / yellow / red
KC-mark
KC-EMV
Active PFC
no
Permission
c UL us - Listed (OL)
Material Note
RoHs compliant
Network Forms
IT
Fastening Type
Assembly plate, screwed
Network Filter
integrated
Operating Mode
1x SYNC-Schnittstelle für Encoder-Emulation oder Encoder-Eingang
Safety Function
Sichere maximale Geschwindigkeit (SMS)
Process Coupling
Interpolated Mode CSV
Protection Class
I
Based On Standard
EN 62061
Fieldbus Coupling
PROFINET
Operating Element
Optional: Control unit CDSB
Relative Humidity
Not condensing
Certification Body
UL E331130
Protection Category
IP20
Complies To Standard
EN ISO 13849-1
Peak Performance (W)
7500
Communication Profile
DriveProfile
Installation Position
vertical
Max. Setup Height (m)
2.000
Output Frequency (Hz)
0 to 599
Over-voltage Category
III
LABS (PWIS) Conformity
VDMA24364-Zone III
Network Frequency (Hz)
48 to 62
Performance Level (PL)
Safe switched off torque (STO) / category 4 performance level e
Switching Logic Inputs
PNP (Positive switching)
Degree Of Contamination
2
Output Voltage Range AC
3x (0 u Input) V
Properties Logic Inputs
Not galvanically separated
Switching Logic Outputs
PNP (Positive switching)
Hardware Error Tolerance
1
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
-25 to 55
Logic Input Specification
depending on IEC 61131-2, type 3
Operating Mode Controller
Autotuning
Work Area Analogue Inputs
± 10 V
Work Area Logic Input (V)
-3 to 30
Ethernet Interface, Report
TCP/IP
Fieldbus Interface, Report
PROFINET RT
Input Voltage Range AC (V)
200 to 480
Safe Communication Profile
PROFIsafe
Encoder Interface, Function
SIN/COS-Geber
Surge Voltage Strength (kV)
6
Ethernet Interface, Function
Parameterising and commissioning
Fieldbus Interface, Function
EtherNet/IP Slave
Impedance Target Value Input
70
Peak Current Load Supply (A)
18
Work Area Target Value Input
± 10 V
Encoder Interface 2, Function
SIN/COS-Geber
Permitted Range Logic Voltage
± 20 %
Quantity Digital Logic Inputs
12
Quantity Of Diagnosis Outputs
4
Quantity Of Safe 2-pin Inputs
4
Max. Peak Current Duration (s)
2
Permitted Voltage Oscillations
± 10 %
Properties Target Value Inputs
konfigurierbar für Strom/Kraft
Safety Subfunctions Up To SIL3
Sichere maximale Geschwindigkeit
UL - Ambient Temperature (°C)
0 to 50
Nominal Current Load Supply (A)
6
Phase Nominal Operating Voltage
3-phase
Synchronous Interface, Function
Encoder-Eingang A/B/Z
Nominal Operating Voltage AC (V)
400
Properties Digital Logic Outputs
teilweise Diagnoseausgänge
Fieldbus Interface, Transfer Rate
100 Mbit/s
Braking Resistance, External (Ohm)
80 to 130
Nominal Performance Controller (W)
2500
Nominal Voltage Load Supply DC (V)
560
Encoder Input Interface, Properties
max. 16384 ppr
Fieldbus Interface, Connection Type
2x socket
Nominal Voltage Logic Supply DC (V)
24
Quantity Of High-speed Logic Inputs
2
Braking Resistance Pulse Energy (Ws)
850
Braking Resistance, Integrated (Ohm)
130
Encoder Output Interface, Properties
max. 16384 ppr
Max. Output Current Holding Brake (A)
1,3
Peak Current Per Phase, Effective (A)
15
Quantity Analogue Target Value Inputs
1
Quantity Of High-speed Switch Outputs
2
Safety Subfunction Up To PL E, Cat. 3
Sichere maximale Geschwindigkeit
Safety Subfunction Up To PL E, Cat. 4
Sicher abgeschaltetes Moment
Impulse Power Braking Resistance (kVA)
5
Quantity Digital Logic Outputs 24 V DC
6
Max. Current Digital Logic Outputs (mA)
20
Permissible Range For Load Power Supply
± 10 %
System Voltage Acc. To EN 61800-5-1 (V)
300
Max. Intermediate Circuit Voltage DC (V)
800
Nominal Current Per Phase, Effective (A)
5
Fieldbus Interface, Connection Technology
RJ45
Quantity Of Zero Potential Switch Outputs
1
Time Resolution Of High-speed Logic Inputs
1
Time Resolution Of High-speed Switch Outputs
1
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Power Input Logic Supply With Parking Brake (A)
1,8
Quantity Of Inputs For Motor Temperature Sensor
1
Braking Resistance Nominal Performance (IEC) (W)
58
Max. Short Circuit Resistance Of The Network (kA)
10
Power Input Logic Supply Without Parking Brake (A)
0,5
Max. Current Of The Zero Potential Switch Outputs (mA)
50
Max. Length Motor Line Without Ext. Network Filter (m)
50
Max. Voltage Drop From Logic Supply To Brake Output (V)
1
Max. Continuous Power Of The External Braking Resistance (IEC) (W)
1200
Max. Current Consumption, Logic Power Supply With Clamping Brake And I/O (A)
2,5
EAN
4052568781637
Manufacturer
Festo
