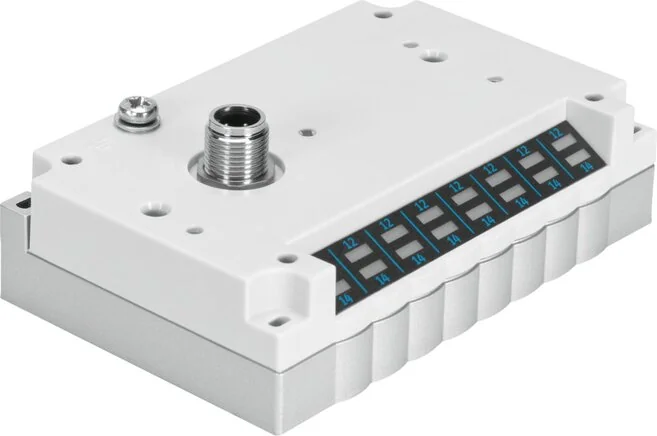

Festo - CPV10-GE-PT-8-1565761 - Electrical Connection

SKU: festo-cpv10-ge-pt-8-1565761

Browse all parts
Festo - CPV10-GE-PT-8-1565761 - Electrical Connection

€511.16€436.89 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€511.16

Brand
Festo
Report
IO-Link
KC-mark
KC-EMV
Baud Rate
38,4 kBit/s, 230,4 kBit/s
Diagnosis
Under-voltage Load supplies
Material Note
RoHs compliant
Cover Material
PA
Seals Material
NBR
Housing Material
PA
ATEX Gas Category
II 3G
Relative Humidity
Not condensing
IO-Link, Port Class
B
Protection Category
IP65
Dimensions W x L x H
71 mm x 110 mm x 38.25 mm
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
IO-Link, Number Of Ports
1
LED Display Bus Specific
1x Kommunikationsstatus
Threaded Sleeve Material
Brass
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
IO-Link, Protocol Version
Device V 1.0
IO-Link, Communication Mode
COM2 (38,4 kBaud), COM3 (230,4 kBaud)
IO-Link, Minimum Cycle Time
Device 3.2 ms
Nominal Load Voltage DC (V)
24
Reverse Polarity Protection
for operating voltage
LED Display Product Specific
16x Ventilstatus
Corrosion Resistance Class KBK
1 - low corrosion stress
IO-Link, Connection Technology
Device 5 pin
Max. Number Of Valve Positions
8
Ex Ignition Protection Type Gas
Ex ec IIC Gc X
IO-Link, Process Data Width OUT
2 Bytes
Nominal Operating Voltage DC (V)
24
Operating Voltage DC Load Voltage (V)
21.6 to 26.4
Ex Protection Approval Outside Of The EU
EPL Gc (GB)
Intrinsic Power Input At Load Voltage (mA)
700
Nominal Operating Voltage DC Load Voltage (V)
24
Intrinsic Power Input At Operating Voltage (mA)
35
Operating Voltage Range DC Electronics / Sensor (V)
18 to 30
EAN
4052568240349
Manufacturer
Festo
