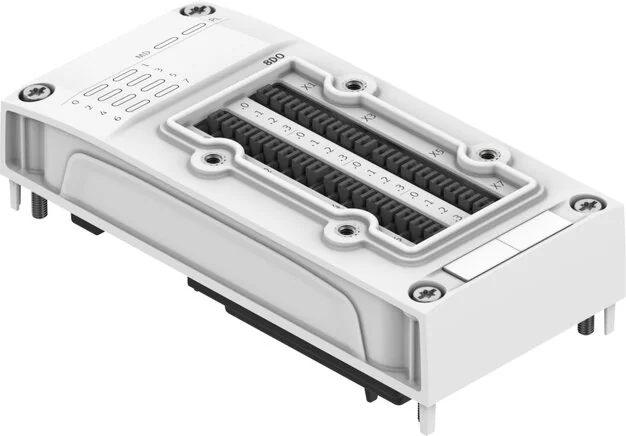

Material Note
phosphorsäureesterfrei
Cover Material
PBT reinforced
Fastening Type
Permanently screwed
Screws Material
Nickel-plated steel
Max. Line Length
30 m Ausgänge
Module Parameter
Verhalten nach Kurzschluss/Überlast analoger Ausgang
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Diagnosis Via LED
Status pro Kanal
Relative Humidity
Not condensing
Dimensions W x L x H
50,1 mm x 107,3 mm x 57,5 mm
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Installation Position
arbitrary
Max. Setup Height (m)
3.500
LABS (PWIS) Conformity
VDMA24364-B2-L
Nominal Altitude Of Use
<= 2000 m ASL (> 79,5 kPa)
Switching Logic Outputs
PNP (Positive switching)
Ambient Temperature (°C)
-20 to 50
Bearing Temperature (°C)
-20 to 70
Fire Inspection, Material
UL94 V-0 (Gehäuse)
Reverse Polarity Protection
yes
Max. Address Volume, Outputs
1
Output Delay With Ohmic Load
Signalwechsel 1->0: < 200 µs
Power Blackout Bridging (ms)
10
Characteristic Curves Outputs
to IEC 61131-2 type 0.5
Corrosion Resistance Class KBK
1 - low corrosion stress
Communication Interface, Protocol
AP
Max. Power Supply Per Channel (A)
0.5
Diagnostics Per Internal Communication
Unterspannung Last
Electrical Connection: Outlet, Function
Digital output
Permissible Voltage Fluctuation Of Load
± 25 %
Nominal Operating Voltage DC Of Load (V)
24
Fuse Protection Of Outputs (Short Circuit)
Internal electronic fuse Per channel
Intrinsic Power Input Operating Voltage Load
typisch 5 mA
Behaviour After End Of Overload Of The Outputs
Keine automatische Wiederkehr
Electrical Connection: Outlet, Connection Type
8x multi tube holder
Max. Cumulative Current Outputs Per Module (A)
4
Electrical Connection Output, Connection Pattern
997388
Electrical Isolation Of Outputs Between Channels
no
Permitted Voltage Oscillations Electronics/sensors
± 25 %
Electrical Connection: Outlet, Connection Technology
Spring tension clamp
Electrical Connection: Outlet, Number Of Pins / Wires
4
Nominal Operating Voltage DC Electronics / Sensor (V)
24
Electrical Connection: Outlet, Conductor Cross-section
0,25 to 1,5
Intrinsic Power Input Operating Voltage Electronics/sensors
typisch 40 mA
Electrical Connection: Outlet, Conductor Cross-section (AWG)
AWG24 - AWG16
Electrical Connection: Outlet, Information On Conductor Cross-section
0,13 - 1,5 mm² für Leiter flexibel ohne Aderendhülse
Electrical Isolation Of Outputs Between Channel - Internal Communication
yes
Potential Separation Between The Supply Voltages Electronics/sensor Technology And Load/valves
yes
