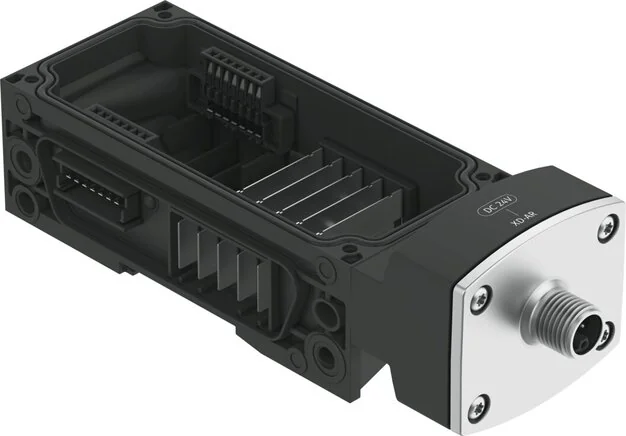

Festo - CPX-AP-A-AL-1-M12-5P-8129263 - Additional Feed

SKU: festo-cpx-ap-a-al-1-m12-5p-8129263

Browse all parts
Festo - CPX-AP-A-AL-1-M12-5P-8129263 - Additional Feed

€203.70€174.10 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€203.70

Brand
Festo
Material Note
phosphorsäureesterfrei
Fastening Type
mit Durchgangsbohrung für Schraube M6 mit Zubehör
Seals Material
PU foam
Flange Material
Zinc pressure cast, nickel-plated
Screws Material
Nickel-plated steel
Housing Material
PA reinforced
Protection Class
III
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Max. Power Supply
10 A (externe Sicherung erforderlich)
Relative Humidity
Not condensing
Nominal Current (A)
10
Dimensions W x L x H
50,1 mm x 150 mm x 45,6 mm
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
50,1
Installation Position
beliebig, auf H-Schiene: waagrecht
Max. Setup Height (m)
3.500
Over-voltage Category
II
LABS (PWIS) Conformity
VDMA24364-B2-L
Nominal Altitude Of Use
<= 2000 m ASL (> 79,5 kPa)
Voltage Supply, Function
Elektronik/Sensoren und Last kommend und Funktionserde
Ambient Temperature (°C)
-20 to 50
Bearing Temperature (°C)
-20 to 70
Fire Inspection, Material
UL94 V-0 (Gehäuse)
Corrosion Resistance Class KBK
1 - low corrosion stress
Voltage Supply, Connection Type
Plug
Power Supply, Connection Pattern
995940
Voltage Supply, Connection Technology
M12x1, L-codiert nach EN 61076-2-111
Voltage Supply, Number Of Poles/wires
5
Voltage Supply, Conductor Cross-section
2,5
Nominal Operating Voltage DC Of Load (V)
24
Nominal Operating Voltage DC Electronics / Sensor (V)
24
Potential Separation Between The Supply Voltages Electronics/sensor Technology And Load/valves
yes
EAN
4052568590703
Manufacturer
Festo
