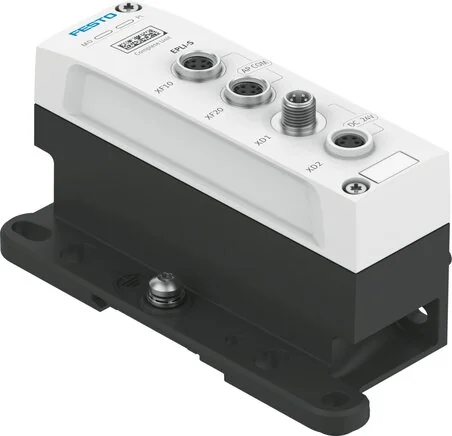

Material Note
phosphorsäureesterfrei
Cover Material
PBT reinforced
Fastening Type
mit Durchgangsbohrung für Schraube M6
Screws Material
Zinc-plated steel
Housing Material
Alu-Druckguss, beschichtet
Max. Line Length
50 m Systemkommunikation
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Diagnosis Via LED
Spannungsversorgung Last
Max. Power Supply
2 x 4 A (externe Sicherung erforderlich)
Relative Humidity
Not condensing
Dimensions W x L x H
48,4 mm x 117,2 mm x 61,5 mm
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Installation Position
beliebig, auf H-Schiene: waagrecht
Max. Setup Height (m)
3.500
LABS (PWIS) Conformity
VDMA24364-B2-L
Nominal Altitude Of Use
<= 2000 m ASL (> 79,5 kPa)
Voltage Supply, Function
Elektronik/Sensoren und Last kommend
Ambient Temperature (°C)
-20 to 50
Bearing Temperature (°C)
-20 to 70
Fire Inspection, Material
UL94 V-0 (Gehäuse)
Reverse Polarity Protection
yes
Power Blackout Bridging (ms)
10
Power Transmission, Function
Elektronik/Sensoren und Last gehend
Corrosion Resistance Class KBK
1 - low corrosion stress
Voltage Supply, Connection Type
Plug
Power Supply, Connection Pattern
991171
Power Transmission, Plug Pattern
991872
Communication Interface, Function
Systemkommunikation XF10 IN / XF20 OUT
Communication Interface, Protocol
AP
Communication Interface, Shielding
yes
Power Transmission, Connection Type
socket / container / ….
Communication Interface, Plug Pattern
995937
Voltage Supply, Connection Technology
M8x1 A coded to EN 61076-2-104
Voltage Supply, Number Of Poles/wires
4
Diagnostics Per Internal Communication
Unterspannung Last
Permissible Voltage Fluctuation Of Load
± 25 %
Voltage Supply, Conductor Cross-section
0,5
Communication Interface, Connection Type
2x socket
Nominal Operating Voltage DC Of Load (V)
24
Power Transmission, Number Of Pins/wires
4
Power Transmission, Connection Technology
M8x1 A coded to EN 61076-2-104
Intrinsic Power Input Operating Voltage Load
typisch 3 mA
Communication Interface, Number Of Pins/cores
4
Communication Interface, Connection Technology
M8x1, D-codiert nach EN 61076-2-114
Permitted Voltage Oscillations Electronics/sensors
± 25 %
Nominal Operating Voltage DC Electronics / Sensor (V)
24
Intrinsic Power Input Operating Voltage Electronics/sensors
typisch 41 mA
Potential Separation Between The Supply Voltages Electronics/sensor Technology And Load/valves
yes
