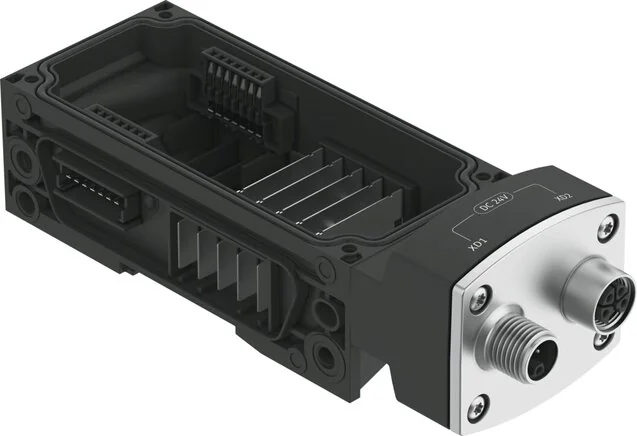

Festo - CPX-AP-A-S-2-M12-4P-8195677 - System Supply

SKU: festo-cpx-ap-a-s-2-m12-4p-8195677

Browse all parts
Festo - CPX-AP-A-S-2-M12-4P-8195677 - System Supply

€295.74€252.77 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€295.74

Brand
Festo
Material Note
phosphorsäureesterfrei
Fastening Type
mit Durchgangsbohrung für Schraube M6 mit Zubehör
Seals Material
PU foam
Flange Material
Zinc pressure cast, nickel-plated
O-ring Material
FPM
Screws Material
Nickel-plated steel
Housing Material
PA reinforced
Protection Class
III
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Max. Power Supply
2 x 16 A (externe Sicherung erforderlich)
Relative Humidity
Not condensing
Nominal Current (A)
16
Dimensions W x L x H
50,1 mm x 150 mm x 45,6 mm
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
50,1
Installation Position
beliebig, auf H-Schiene: waagrecht
Max. Setup Height (m)
3.500
Over-voltage Category
II
LABS (PWIS) Conformity
VDMA24364-B2-L
Nominal Altitude Of Use
<= 2000 m ASL (> 79,5 kPa)
Voltage Supply, Function
Elektronik/Sensoren und Last kommend
Ambient Temperature (°C)
-20 to 50
Bearing Temperature (°C)
-20 to 70
Fire Inspection, Material
UL94 V-0 (Gehäuse)
Power Transmission, Function
Elektronik/Sensoren und Last gehend
Corrosion Resistance Class KBK
1 - low corrosion stress
Voltage Supply, Connection Type
Plug
Power Supply, Connection Pattern
997397
Power Transmission, Plug Pattern
997396
Power Transmission, Connection Type
socket / container / ….
Voltage Supply, Connection Technology
M12x1, L-codiert nach EN 61076-2-111
Voltage Supply, Number Of Poles/wires
4
Voltage Supply, Conductor Cross-section
2,5
Nominal Operating Voltage DC Of Load (V)
24
Power Transmission, Number Of Pins/wires
4
Power Transmission, Connection Technology
M12x1, L-codiert nach EN 61076-2-111
Nominal Operating Voltage DC Electronics / Sensor (V)
24
Potential Separation Between The Supply Voltages Electronics/sensor Technology And Load/valves
yes
EAN
4052568784447
Manufacturer
Festo
