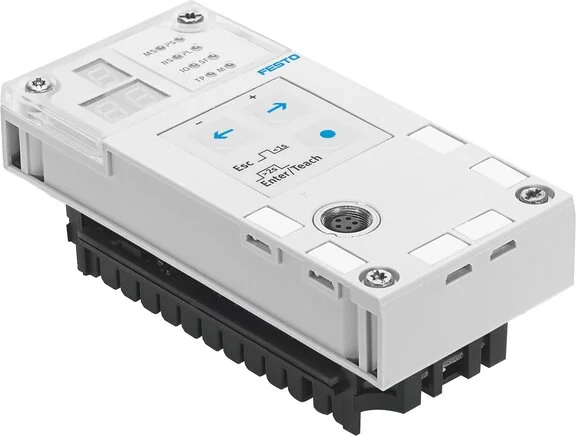

Festo - CPX-CMPX-C-1-H1-548931 - End Position Regulator

SKU: festo-cpx-cmpx-c-1-h1-548931

Festo - CPX-CMPX-C-1-H1-548931 - End Position Regulator

€618.02€528.22 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€618.02

Brand
Festo
Display
Seven segment display
Diagnosis
Modulorientierte Diagnose, über lokale 7-Segment-Anzeige
Axes Per Strand
1
Cable Length (m)
<= 30 m
Housing Material
PA reinforced
Control Interface
Digital, Closing resistance integrated, CAN bus with Festo protocol
Operating Element
3 buttons
Protection Category
IP65, acc. to IEC 60529
Dimensions W x L x H
50 mm x 107 mm x 55 mm
Quantity Axis Strands
1
LABS (PWIS) Conformity
5 - 95 %, Not condensing
Max. Number Of Modules
10
Ambient Temperature (°C)
-5 to 50
Load Voltage Range DC (V)
20 to 30
Permitted Load Current (A)
2,5
Nominal Load Voltage DC (V)
24
Operating Voltage Range DC (V)
18 to 30
Nominal Operating Voltage DC (V)
24
Oscillation Strength To DIN/IEC 68 Part 2-6
Tested to severity class 2
Power Input In Nominal Operating Voltage (mA)
80
EAN
4052568190231
Manufacturer
Festo
