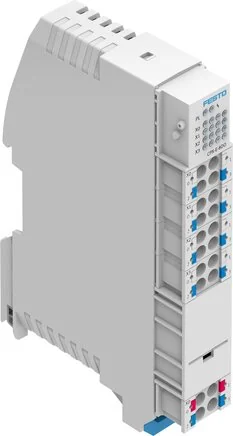

Festo - CPX-E-16DI-4080492 - Digital Input Module

SKU: festo-cpx-e-16di-4080492

Festo - CPX-E-16DI-4080492 - Digital Input Module

€246.34€210.55 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€246.34

Brand
Festo
Permission
RCM mark
Switch Level
Signal 0: <= 5 V, Signal 1: >= 11 V
Fastening Type
With Slot rail
Quantity Inputs
16
Housing Material
PA
Module Parameter
Diagnosis short circuit sensor supply, Input debouncing time, Signal extension time, Behaviour after short circuit/overload
Shock Resistance
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
Channel Parameter
Signal extension
Diagnosis Via Bus
Short circuit / overload circuit sensor supply
Diagnosis Via LED
Error per module, Status per channel
Relative Humidity
95 %, Not condensing
Protection Category
IP20
Dimensions W x L x H
18.9 mm x 76.6 mm x 124.3 mm
Fuse (Short Circuit)
Internal electronic fuse Per module
Material Information
LABS containing materials included, RoHs compliant
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
18,9
Input Debouncing Time
0.1 ms, 3 ms, 10 ms, 20 ms
Switching Logic Inputs
PNP (positive switching), 2-wire sensors acc. to IEC 61131-2, 3-wire sensors acc. to IEC 61131-2
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Characteristic Curves Inputs
to IEC 61131-2 type 3
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Address Volume Inputs (Byte)
2
Electrical Connection: Input, Function
Digital input
Potential Separation Channel - Channel
no
Potential Separation Channel - Internal Bus
no
Electrical Connection: Input, Connection Type
8x multi tube holder
Max. Cumulative Current Inputs Per Module (A)
1,8
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Permitted Voltage Oscillations Electronics/sensors
± 25 %
Electrical Connection: Input, Connection Technology
Spring tension clamp
Electrical Connection: Input, Number Of Pins / Wires
6
Nominal Operating Voltage DC Electronics / Sensor (V)
24
Intrinsic Power Input Operating Voltage Electronics/sensors
Type 15 mA
Electrical Connection: Inlet, Conductor Cross-section (mm²)
0.2 to 1.5
Electrical Connection: Inlet, Information On Conductor Cross-section
0.2 - 2.5 mm² for flexible conductor without wire end sleeve
EAN
4052568291129
Manufacturer
Festo
