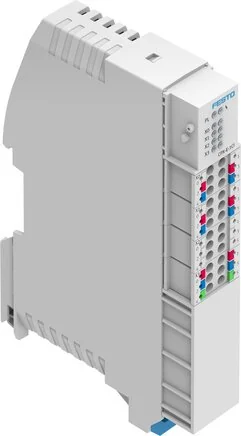

Festo - CPX-E-1CI-4827505 - Counter Module

SKU: festo-cpx-e-1ci-4827505

Festo - CPX-E-1CI-4827505 - Counter Module

€396.78€339.13 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€396.78

Brand
Festo
Permission
RCM mark
Switch Level
Signal 0: <= 5 V, Signal 1: >= 11 V
Fastening Type
With Slot rail
Quantity Inputs
4
Housing Material
PA
Module Parameter
Internal Revision ID, Entprellzeit Digitaleingänge, Impulse/Nullimpuls, Integrationszeit Geschwindigkeitsmessung, Ladewert, Latchereignis, Latchsignal, Latchverhalten, Obere Zählgrenze, Signalart/Gebertyp, Signalauswertung, Überwachung Leitungsbruch, Überwachung Nullimpuls, Überwachung Spurfehler, Untere Zählgrenze
Shock Resistance
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
Channel Parameter
Signal extension
Diagnosis Via Bus
Kurzschluss/Überlast Sensorversorgung, Parameterfehler, Fehler am Messsystem, Überwachung Drahtbruch, Überwachung Nullimpuls, Überwachung Spurfehler
Diagnosis Via LED
Fehler pro Modul, Status pro Kanal, Fehler Geberversorgung, Geberfehler, Normalbetrieb Geber, Normalbetrieb Geberversorgung
Relative Humidity
95 %, Not condensing
Protection Category
IP20
Dimensions W x L x H
18.9 mm x 76.6 mm x 124.3 mm
Fuse (Short Circuit)
Internal electronic fuse Per module
Material Information
LABS containing materials included, RoHs compliant
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
18,9
Input Debouncing Time
0,02 ms, 0,1 ms, 3 ms
Switching Logic Inputs
PNP (positive switching), 2-wire sensors acc. to IEC 61131-2, 3-wire sensors acc. to IEC 61131-2
Voltage Supply, Function
Geberversorgung
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Characteristic Curves Inputs
to IEC 61131-2 type 3
Power Blackout Bridging (ms)
10
Corrosion Resistance Class KBK
0 - No corrosion stressing
Voltage Supply, Connection Type
Multi tube holder
Max. Address Volume Inputs (Byte)
12
Max. Address Volume Outputs (Byte)
2
Voltage Supply, Connection Technology
Spring tension clamp
Voltage Supply, Number Of Poles/wires
6
Electrical Connection: Input, Function
Digital input
Potential Separation Channel - Channel
no
Electrical Connection: Input 2, Function
Zähleingang
Potential Separation Channel - Internal Bus
no
Electrical Connection: Input, Connection Type
2x multi tube holder
Max. Cumulative Current Inputs Per Module (A)
1,8
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Voltage Supply, Conductor Cross-section (mm²)
0.2 to 1.5
Electrical Connection: Input 2, Connection Type
Multi tube holder
Permitted Voltage Oscillations Electronics/sensors
± 25 %
Electrical Connection: Input, Connection Technology
Spring tension clamp
Electrical Connection: Input, Number Of Pins / Wires
6
Electrical Connection: Input 2, Connection Technology
Spring tension clamp
Nominal Operating Voltage DC Electronics / Sensor (V)
24
Electrical Connection: Input 2, Number Of Pins / Wires
6
Voltage Supply, Information On Conductor Cross-section
0.2 - 2.5 mm² for flexible conductor without wire end sleeve
Intrinsic Power Input Operating Voltage Electronics/sensors
Type 15 mA
Electrical Connection: Inlet, Conductor Cross-section (mm²)
0.2 to 1.5
Electrical Connection: Input 2, Conductor Cross-section (mm²)
0.2 to 1.5
Electrical Connection: Inlet, Information On Conductor Cross-section
0.2 - 2.5 mm² for flexible conductor without wire end sleeve
Electrical Connection: Inlet 2, Information On Conductor Cross-section
0.2 - 2.5 mm² for flexible conductor without wire end sleeve
EAN
4052568418960
Manufacturer
Festo
