Fastening Type
With Slot rail

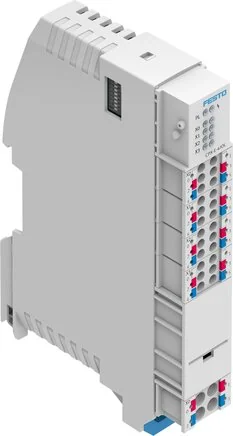

IO-Link, Report
Master V 1.1
Module Parameter
Diagnosis short circuit actuator supply, Deactivate sensor supply, Behaviour after short circuit/overload
Shock Resistance
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
Channel Parameter
Deactivate actuator supply, Device error code, Force channel x, Channel mode, channel status, cycle time
Diagnosis Via Bus
Under-voltage, general error, Device missing/failed, Wire break, Module error, Short circuit, Parameter error, under running/over running
Diagnosis Via LED
Error per module, Status per channel
Relative Humidity
95 %, Not condensing
Dimensions W x L x H
18.9 mm x 76.6 mm x 124.3 mm
Fuse (Short Circuit)
internal electronic fuse, load per channel, internal electronic fuse, sensor per module
Material Information
LABS containing materials included, RoHs compliant
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
IO-Link, Communication
C/Q LED green
IO-Link, Number Of Ports
4
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
IO-Link, Communication Mode
configurable using software, SIO, COM1 (4.8 kBaud), COM2 (38.4 kBaud), COM3 (230.4 kBaud)
IO-Link, Minimum Cycle Time
Depends on minimum supported cycle time of the connected IO link devices
Corrosion Resistance Class KBK
0 - No corrosion stressing
IO-Link, Process Data Width IN
Parameterisable 8 - 32 Bytes
IO-Link, Process Data Width OUT
Parameterisable 8 - 32 Bytes
Voltage Supply, Connection Type
Multi tube holder
Voltage Supply, Connection Technology
Spring tension clamp
Voltage Supply, Number Of Poles/wires
4
Permitted Voltage Oscillations Outputs
± 25 %
Potential Separation Channel - Channel
no
Nominal Operating Voltage DC Outputs (V)
24
Potential Separation Channel - Internal Bus
no
Protect Against Direct And Indirect Contact
Funktionskleinspannung mit sicherer Trennung (PELV)
Intrinsic Power Input Operating Voltage Load
Type 15 mA
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Electrical Connection IO Link, Connection Type
4x multi tube holder
Voltage Supply, Conductor Cross-section (mm²)
0.2 to 1.5
Permitted Voltage Oscillations Electronics/sensors
± 25 %
Electrical Connection IO Link, Connection Technology
Spring tension clamp
Electrical Connection IO Link, Number Of Pins / Wires
6
Nominal Operating Voltage DC Electronics / Sensor (V)
24
Voltage Supply, Information On Conductor Cross-section
0.2 - 2.5 mm² for flexible conductor without wire end sleeve
Intrinsic Power Input Operating Voltage Electronics/sensors
Type 50 mA
Electrical Connection IO Link, Conductor Cross-section (mm²)
0.2 to 1.5
Electrical Connection IO Link, Information On Conductor Cross-section
0.2 - 2.5 mm² for flexible conductor without wire end sleeve
