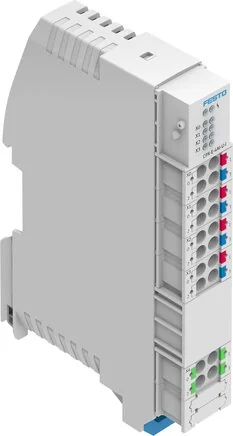

Data Format
15 bit + sign, linear scale
Signal Range
-10 - 10 V, -20 - 20 mA, -5 - 5 V, 0 - 10 V, 0 - 20 mA, 1 - 5 V, 4 - 20 mA
Repeatability
±0.1 % at 25 °C
Fastening Type
With Slot rail
Max. Line Length
30 m, Shielded
Module Parameter
Data format analogue inputs, Diagnosis short circuit sensor supply, Diagnosis parametering error, Diagnosis overload analogue inputs, Hysteresis limit value monitoring, Deactivate sensor supply, Behaviour after overload analogue inputs, Behaviour after short circuit/overload
Shock Resistance
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
Channel Parameter
Diagnosis wire break, Diagnosis upper limit value, Diagnosis parameter error, Diagnosis lower limit value, Diagnosis under running/over running, Smoothing factor, Signal range per channel, lower/upper limit value
Diagnosis Via Bus
Wire break, Short circuit/overload sensor supply, Parameter error, Parametering error, overload analogue inputs, upper limit value not held, Over/under running, Lower limit value not maintained
Diagnosis Via LED
Error per channel, Error per module
Relative Humidity
95 %, Not condensing
Measured Parameter
Voltage, Current
Dimensions W x L x H
18.9 mm x 76.6 mm x 124.3 mm
Fuse (Short Circuit)
Internal electronic fuse Per module
Material Information
LABS containing materials included, RoHs compliant
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Power Blackout Bridging (ms)
10
Base Error Limit At 25 °C (%)
±0,2
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Address Volume Inputs (Byte)
8
Electrical Connection: Input, Function
Analogue input
Potential Separation Channel - Channel
no
Electrical Connection: Input 2, Function
Functional ground
Potential Separation Channel - Internal Bus
yes
Electrical Connection: Input, Connection Type
4x multi tube holder
Max. Cumulative Current Inputs Per Module (A)
1,4
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Electrical Connection: Input 2, Connection Type
Multi tube holder
Permitted Voltage Oscillations Electronics/sensors
± 25 %
Electrical Connection: Input, Connection Technology
Spring tension clamp
Electrical Connection: Input, Number Of Pins / Wires
4
Electrical Connection: Input 2, Connection Technology
Spring tension clamp
Nominal Operating Voltage DC Electronics / Sensor (V)
24
Electrical Connection: Input 2, Number Of Pins / Wires
4
Intrinsic Power Input Operating Voltage Electronics/sensors
Type 70 mA
Electrical Connection: Inlet, Conductor Cross-section (mm²)
0.2 to 1.5
Electrical Connection: Input 2, Conductor Cross-section (mm²)
0.2 to 1.5
Electrical Connection: Inlet, Information On Conductor Cross-section
0.2 - 2.5 mm² for flexible conductor without wire end sleeve
Electrical Connection: Inlet 2, Information On Conductor Cross-section
0.2 - 2.5 mm² for flexible conductor without wire end sleeve
