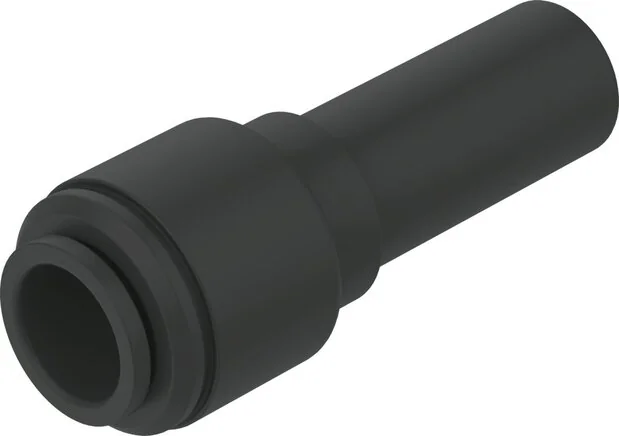

Festo - CQ-22H-18-177704 - Push-In Fitting

SKU: festo-cq-22h-18-177704

Festo - CQ-22H-18-177704 - Push-In Fitting

€15.71€13.43 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€15.71

Brand
Festo
Packing Size
1
Material Note
RoHs compliant
Sleeve Material
POM
Housing Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Food Compatibility
See expanded material information
Nominal Width (mm)
17,3
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
Plug sleeve CQ-22
Pneumatic Connection 2
für Rohr-/Schlauch Außen-Ø 18 mm
Ambient Temperature (°C)
-25 to 70
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Temperature Depending Operating Pressure (bar)
-0.95 to 15
Operating Pressure Complete Temperature Range (bar)
-0.95 to 7
EAN
4052568038533
Manufacturer
Festo
