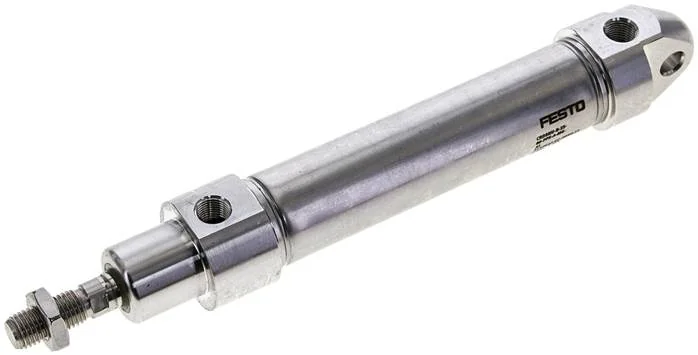

Festo - CRDSNU-B-25-80-PPS-A-MG-A1-2159640 - Standard Cylinder

SKU: festo-crdsnu-b-25-80-pps-a-mg-a1-2159640

Browse all parts
Festo - CRDSNU-B-25-80-PPS-A-MG-A1-2159640 - Standard Cylinder

€210.37€179.80 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€210.37

Brand
Festo
Dampening
PPS: Self-setting pneumatic end position dampening
Stroke (mm)
80
Cover Material
High-alloyed stainless steels
Fastening Type
With Accessories
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
ISO 6432
Food Compatibility
See expanded material information
Position Detection
For proximity switch
Construction Set Up
Piston, piston rod, cylinder tube
Material Information
RoHs compliant
High-alloyed stainless steels
Piston Diameter (mm)
25
Pneumatic Connection
G1/8
Installation Position
arbitrary
Cylinder Tube Material
High-alloyed stainless steels
Principle Of Operation
double acting
Maritime Classification
see Certificate
Operating Pressure (bar)
1 to 10
Base Weight At 0 mm Stroke (g)
410
Theoretical Force At 6 bar, Flow (N)
295
Supplement Moved Mass Per 10 mm Stroke (g)
6,2
Theoretical Force At 6 bar, Return Flow (N)
247
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
4 - particularly severe corrosion stress
EAN
4052568252472
Manufacturer
Festo
