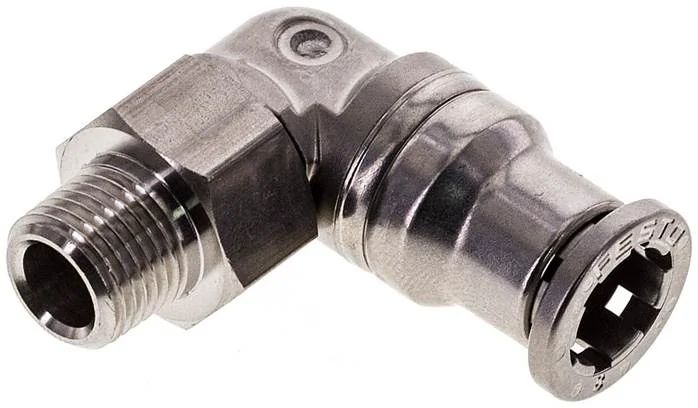

Festo - CRQSL-1/8-8-162873 - L Fitting

SKU: festo-crqsl-1-8-8-162873

Festo - CRQSL-1/8-8-162873 - L Fitting

€89.04€76.10 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€89.04

Brand
Festo
Size
Standard
Design
L-Form
Packing Size
1
Material Note
RoHs compliant
Sleeve Colour
silver
Stud Material
High-alloyed stainless steels
Fastening Type
Außensechskant SW14
Sleeve Material
High-alloyed stainless steels
Housing Material
High-alloyed stainless steels
Operating Medium
Wasser (flüssig, eisfrei)
Usable Pipelines
PFAN
Food Compatibility
See expanded material information
Nominal Width (mm)
5,2
Construction Set Up
Push-pull principle
Thrust Ring Material
High-alloyed stainless steels
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread R1/8
Pneumatic Connection 2
für Schlauch Außen-Ø 8 mm
Hose Plug-in Depth (mm)
21,5
Ambient Temperature (°C)
-15 to 120
Tube Seal, Hose Seal Material
FPM
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Information About Operating Pressure
Wasser: max. 0,6 MPa bei max. 50 °C
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568072742
Manufacturer
Festo
