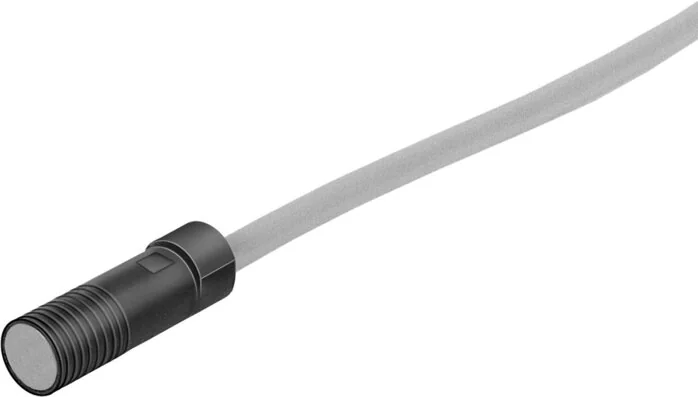

Festo - CRSMEO-4-K-LED-24-161775 - Proximity Switch

SKU: festo-crsmeo-4-k-led-24-161775

Festo - CRSMEO-4-K-LED-24-161775 - Proximity Switch

€100.70€86.07 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€100.70

Brand
Festo
Design
round
Permission
RCM mark
Material Note
RoHs compliant
Control Output
Bipolar contact
Fastening Type
With Accessories
Housing Colour
black
Cable Length (m)
2,5
Housing Material
PP
Measured Parameter
Position
Repeatability (mm)
0,2
Cable Shield Colour
Grey
Protection Category
IP67
Switch On Time (ms)
0,5
Switch Off Time (ms)
0,03
Cable Sleeve Material
TPE-O
Measurement Principle
Reed magnetic
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Current (mA)
500
Short Circuit Resistance
no
Ambient Temperature (°C)
-20 to 60
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
Reverse Polarity Protection
no
Inductive Protection Circuit
adjusted to MZ, MY, ME coils
Max. Switching Frequency (Hz)
800
Max. Switching Capacity DC (W)
10
Operating Voltage Range DC (V)
12 to 30
Rated Operating Voltage DC (V)
24
Electrical Connection 1, Connection Type
cable
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
3
Ambient Temperature For Moving Cable Placements (°C)
-5 to 60
EAN
4052568071974
Manufacturer
Festo
