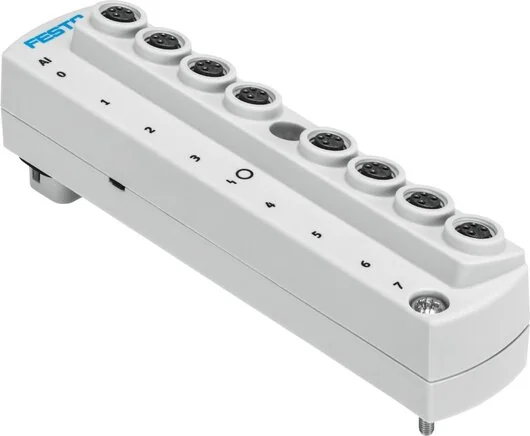

Festo - CTMM-S1-A-8E-A-M8-4-8047506 - Input Module

SKU: festo-ctmm-s1-a-8e-a-m8-4-8047506

Festo - CTMM-S1-A-8E-A-M8-4-8047506 - Input Module

€408.97€349.55 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€408.97

Brand
Festo
Signal Range
4 - 20 mA
Material Note
RoHs compliant
Quantity Inputs
8
Housing Material
PA reinforced
Quantity Outputs
0
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Diagnosis Via LED
Error per module
Measured Parameter
Current
Protection Category
IP67
Dimensions W x L x H
27 mm x 123 mm x 40 mm
Fuse (Short Circuit)
Internal electronic fuse
Max. Line Length (m)
30
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
28
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Medium Temperature (°C)
-5 to 50
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 40
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Nominal Operating Voltage DC (V)
24
Electrical Connection: Input, Function
Analogue input
Potential Separation Channel - Channel
no
Potential Separation Channel - Internal Bus
no
Electrical Connection: Input, Connection Type
8x socket
Max. Cumulative Current Inputs Per Module (A)
0,2
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Permitted Voltage Oscillations Electronics/sensors
± 25 %
Electrical Connection: Input, Connection Technology
M8x1 A coded to EN 61076-2-104
Electrical Connection: Input, Number Of Pins / Wires
4
Nominal Operating Voltage DC Electronics / Sensor (V)
24
Intrinsic Power Input Operating Voltage Electronics/sensors
typically 12 mA
EAN
4052568435295
Manufacturer
Festo
